Agriculture

Fixed Boom Telehandlers

Agri Farmer 30.7 TCL

Max Capacity:

3,000 kg

Max Lift Height:

6.35 m

Total Weight:

6,100 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

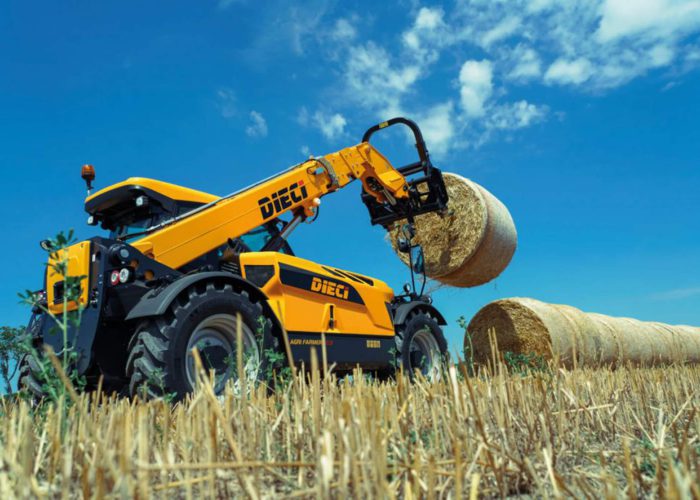

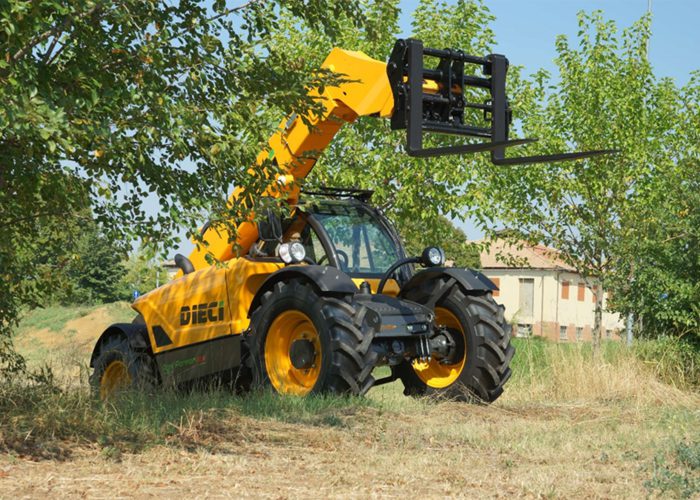

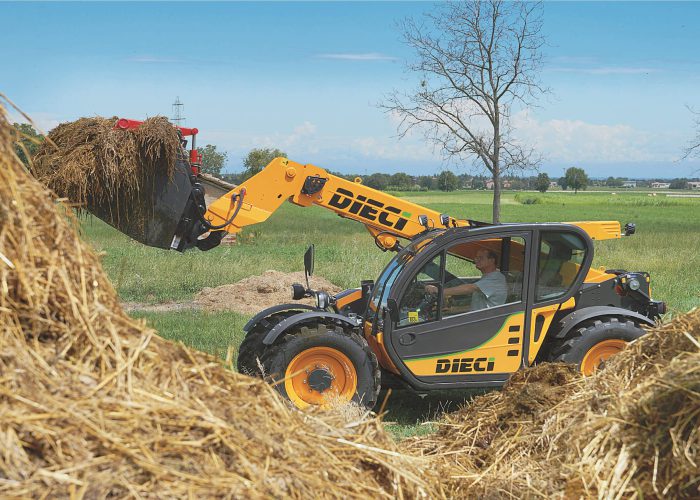

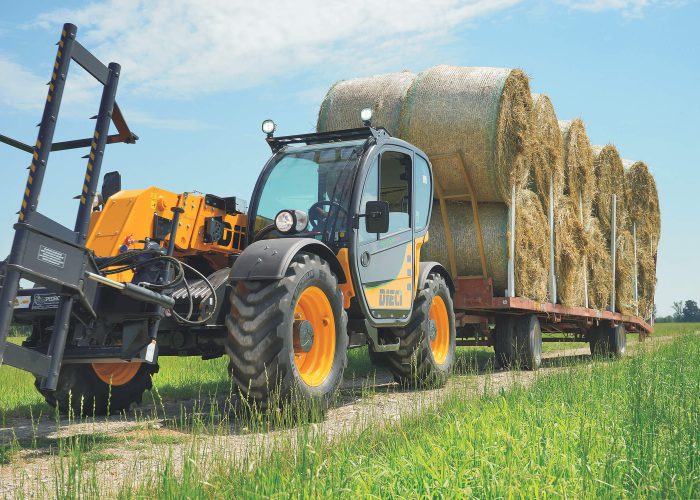

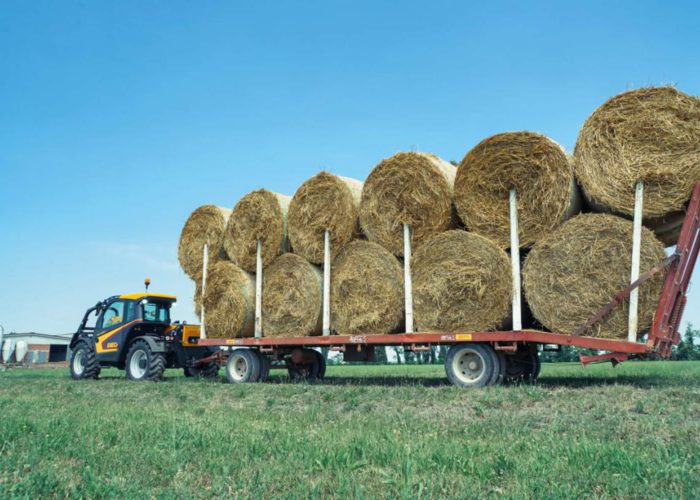

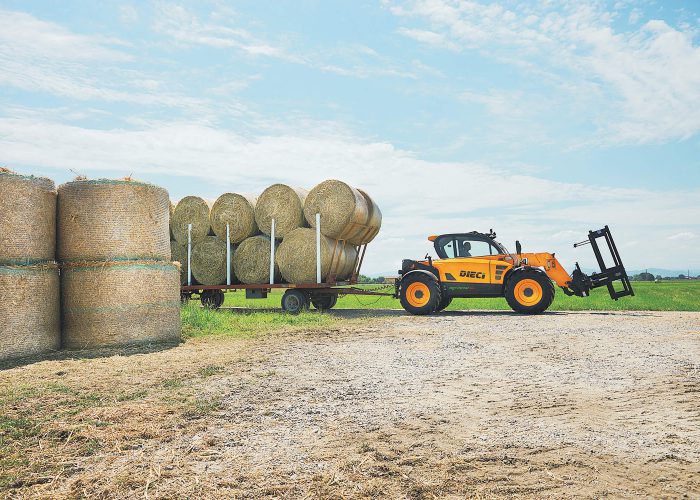

      Dieci Agri Farmer 30.7 TCL Telehandler
      ABOUT

      Product Info

      One of Dieci’s most agile models, the Agri Farmer 30.7 TCL is perfect for small to medium-sized properties, offering various lift heights and capacities to match diverse loading and handling needs. Features include high quality interiors, large windows for maximum visibility and a sound-absorbing roof.

      Direction of travel and boom are controlled by the new CAN-bus single-lever joystick and hydrostatic transmission allows maximum forward travel precision even at full speed.

      The new ROPS and FOPS approved cab is provided with a shock absorption system, with integrated adjustment consisting of 4 supports that reduce impact and jolts at 360°.

      TECHNICAL

      Specifications

      Length: 4,765 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 6.35 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Liquid: Cooling

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 L/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with electronic control with variable displacement pump and ECO function

      Standard tyres: 12.5×18″
