Agriculture

Fixed Boom Telehandlers

Agri Farmer 30.9 TCL

Max Capacity:

3,000 kg

Max Lift Height:

8.7 m

Total Weight:

6,250 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

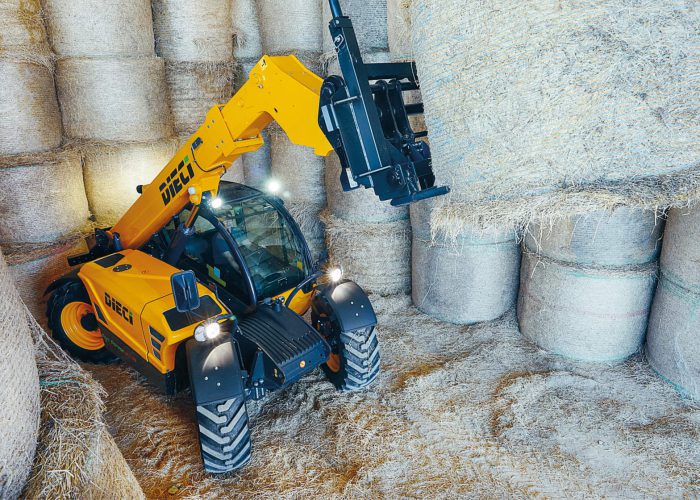

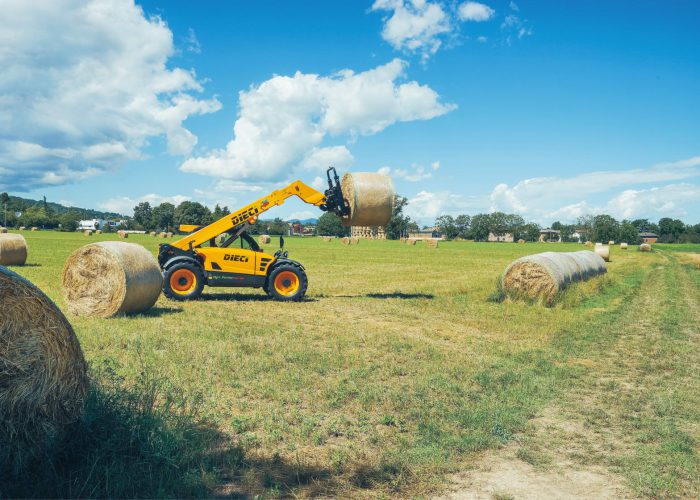

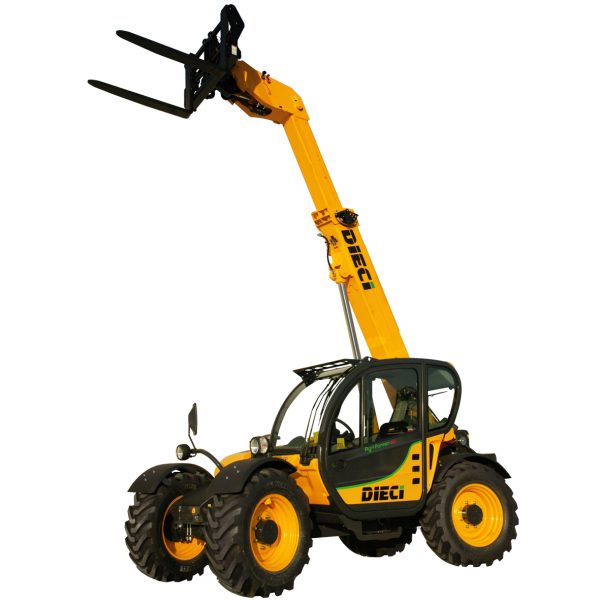

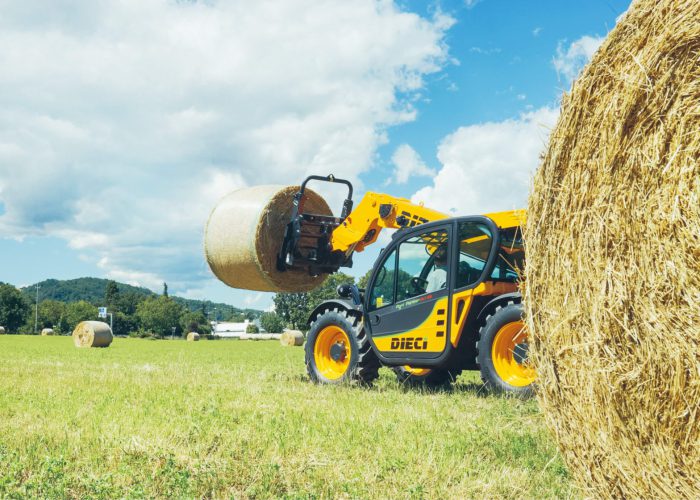

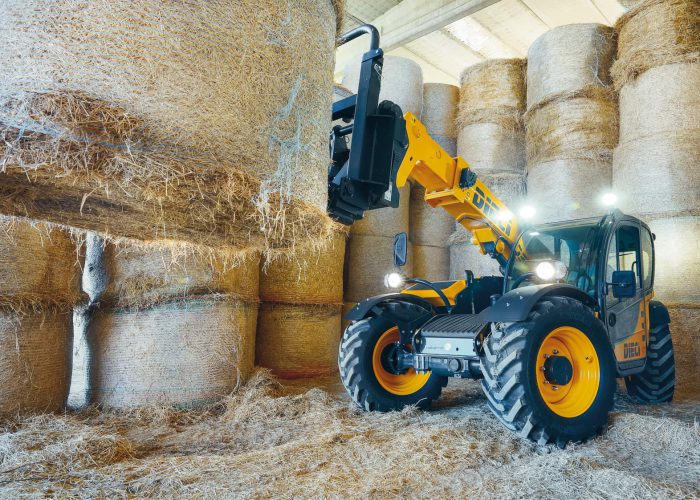

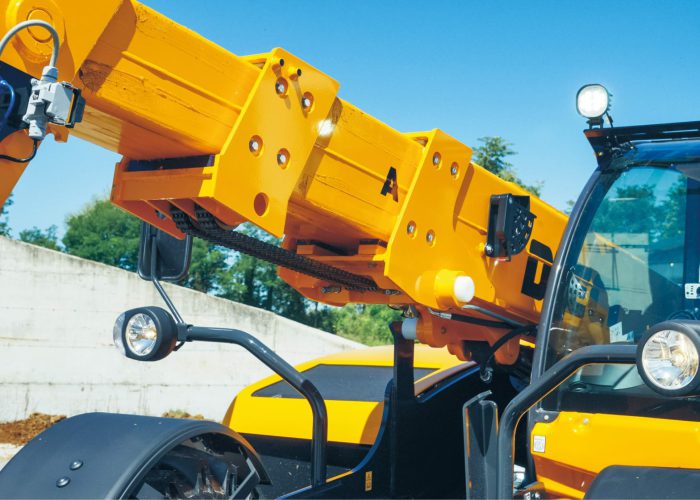

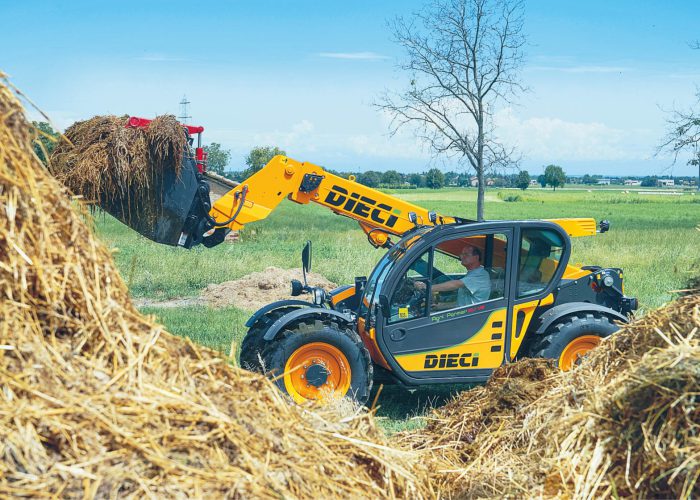

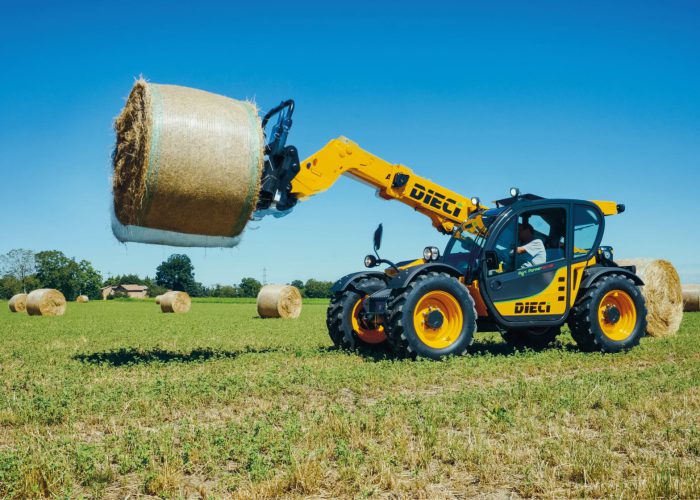

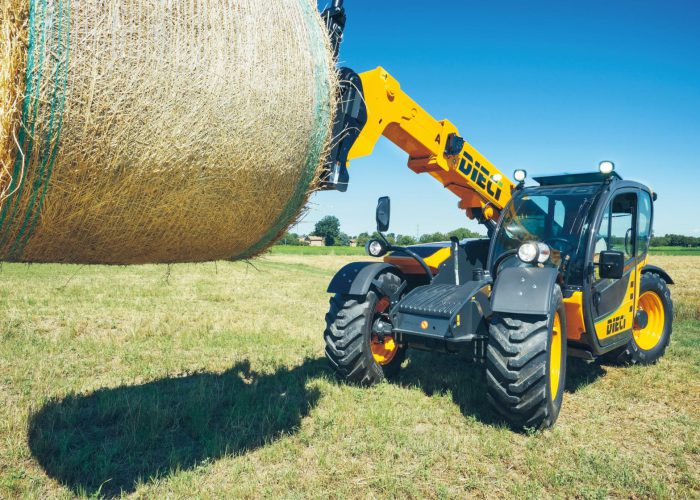

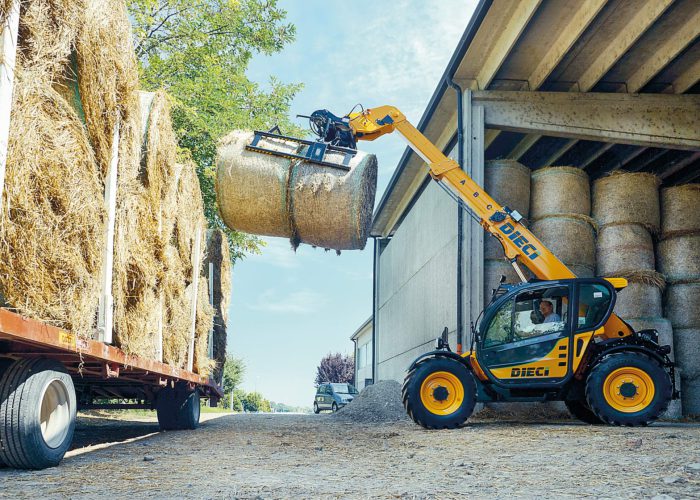

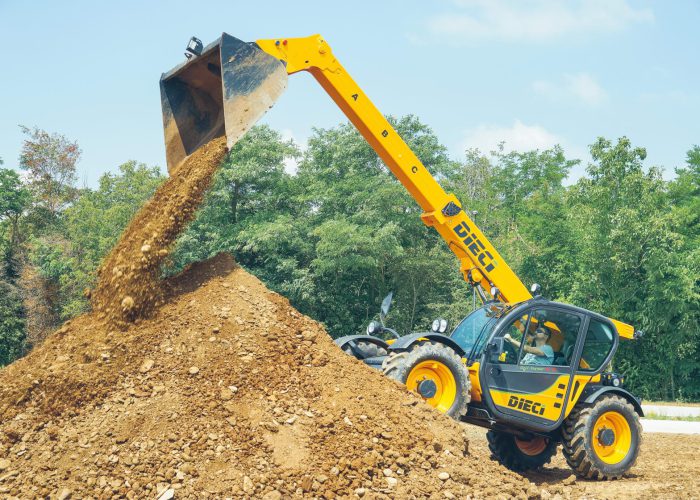

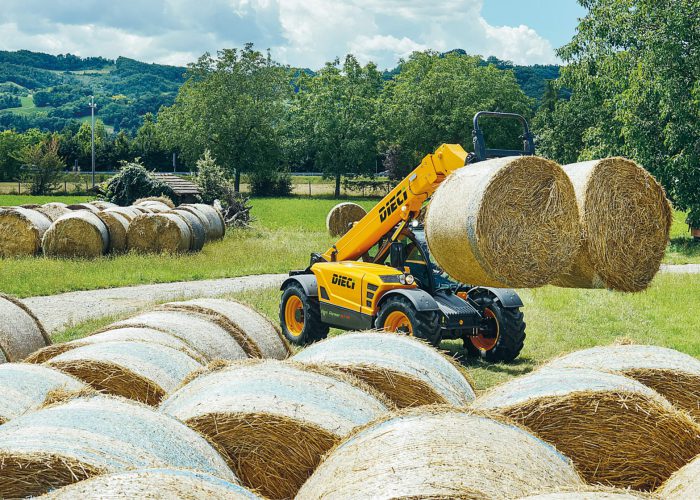

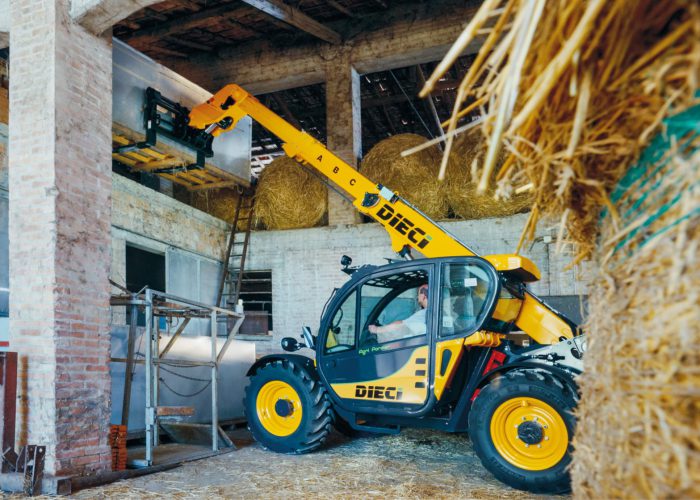

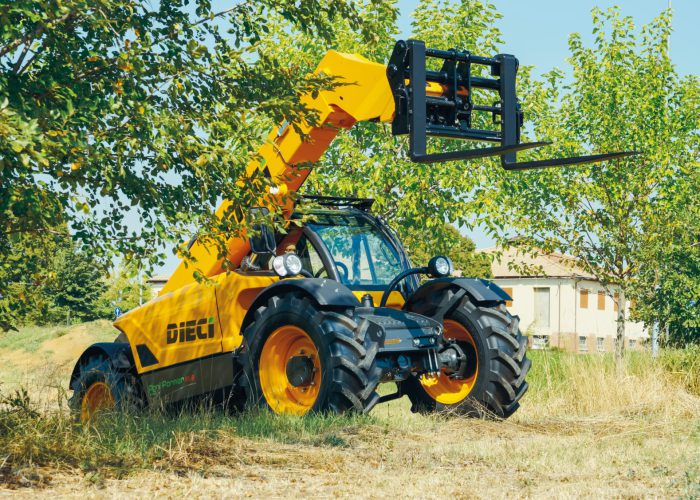

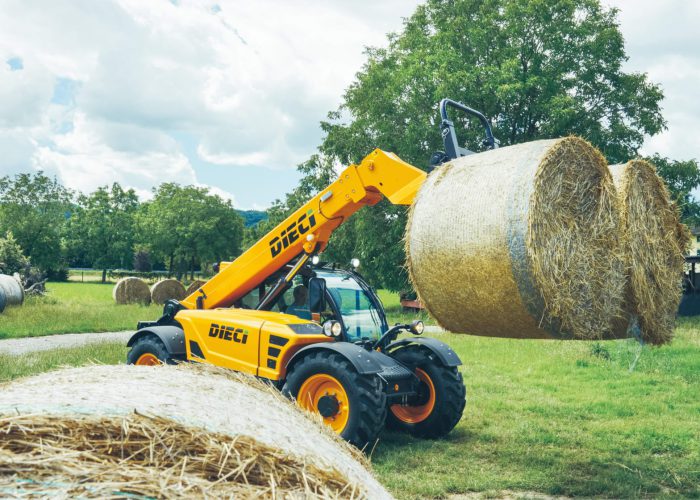

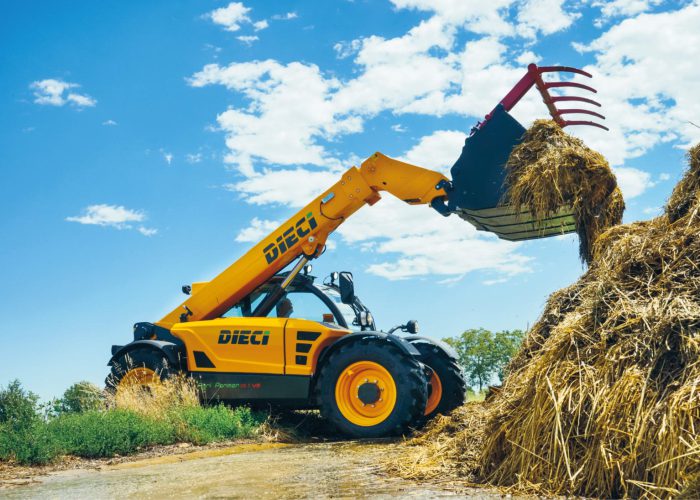

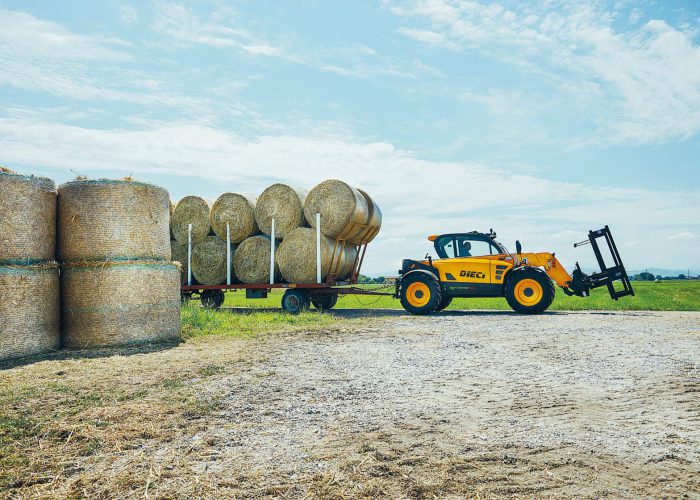

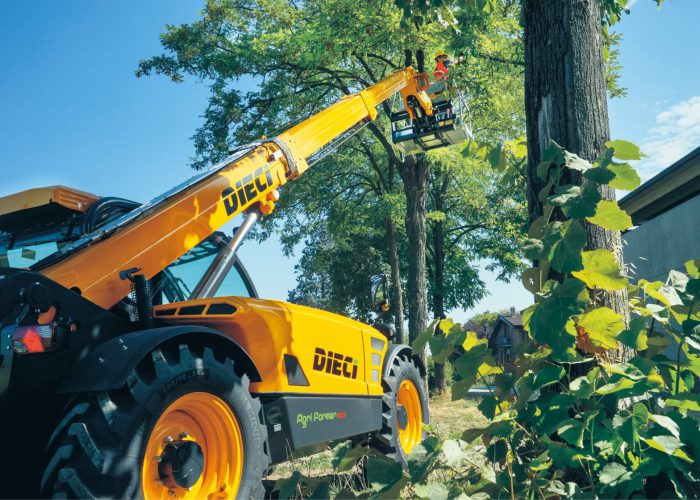

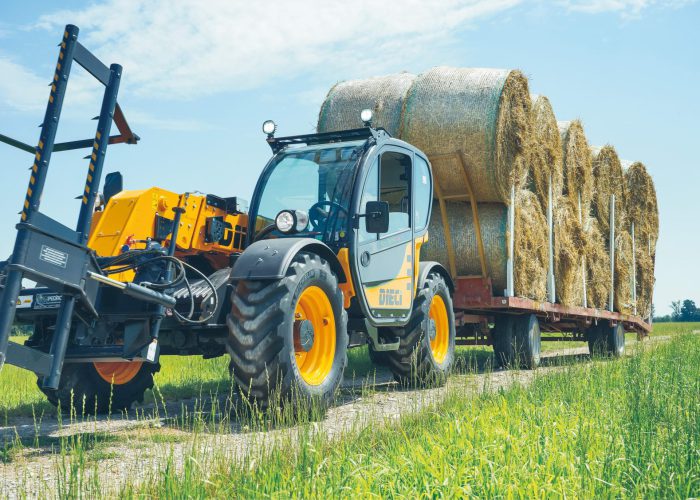

      Dieci Agri Farmer 30.7 TCL Telehandler
      ABOUT

      Product Info

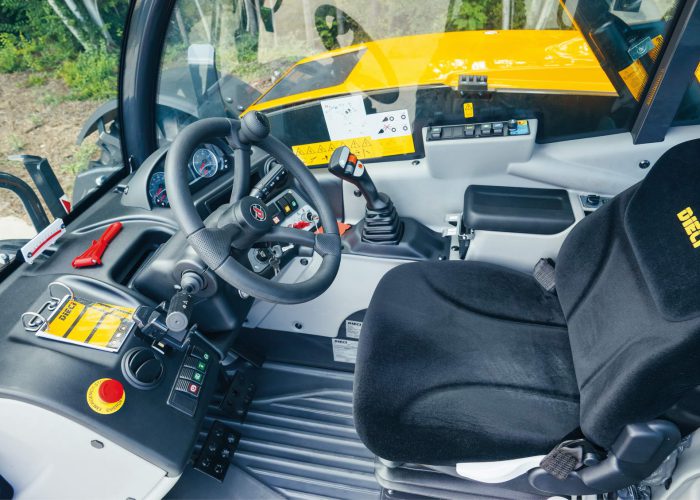

      Dieci telehandlers have always been a combination of comfort and functionality which makes us stand out all over the world. With precise movements, exceptional manoeuvrability, maximum power both at the wheels and boom, noise insulation, and a thoughtfully crafted control layout, the Agri Farmer 30.9 TCL offers simplicity, intuitiveness and comfort in operation.

      Equipped with hydrostatic transmission guarantees power, reactivity and control in manoeuvres, while a single control unit measures the optimal working parameters through in-depth diagnostics, displaying them in real time. The Agri Farmer 30.9 TCL is also compatible with a diverse array of accessories, rendering it an exceptionally versatile machine.

      TECHNICAL

      Specifications

      Length: 4,775 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 8.7 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,250 kg

      Brand: Kubota

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 L/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with electronic control with variable displacement pump and ECO function

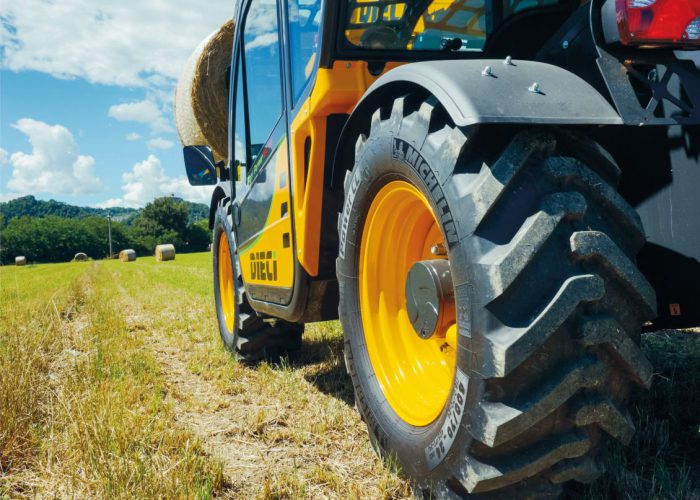

      Standard tyres: 12.5×18″
