Fixed Boom Telehandlers

Agri Pivot T70

Max Capacity:

3,000 kg

Max Lift Height:

5.2 m

Total Weight:

7,150 kg

Max Power:

85.9 kW (115 hp)

Engine Brand:

Perkins
















      Agri Pivot T70
      ABOUT

      Product Info

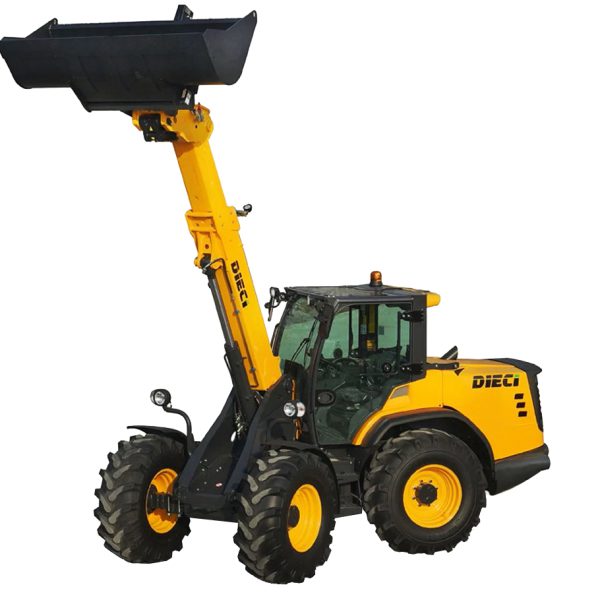

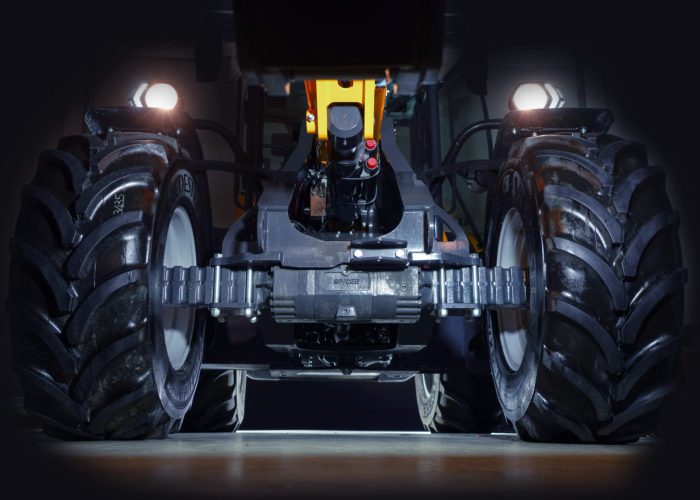

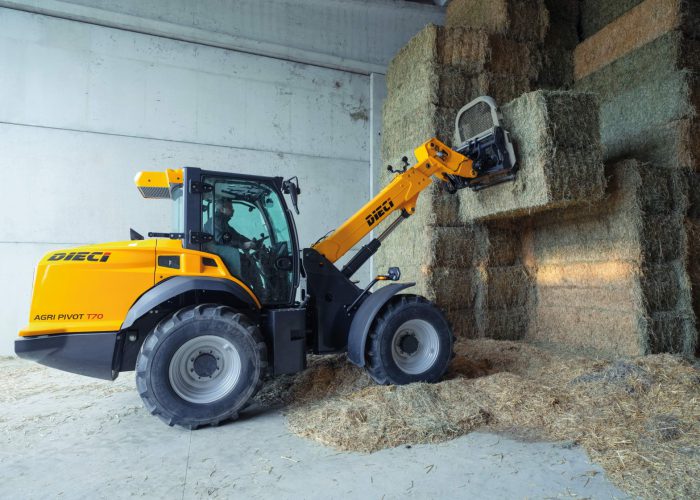

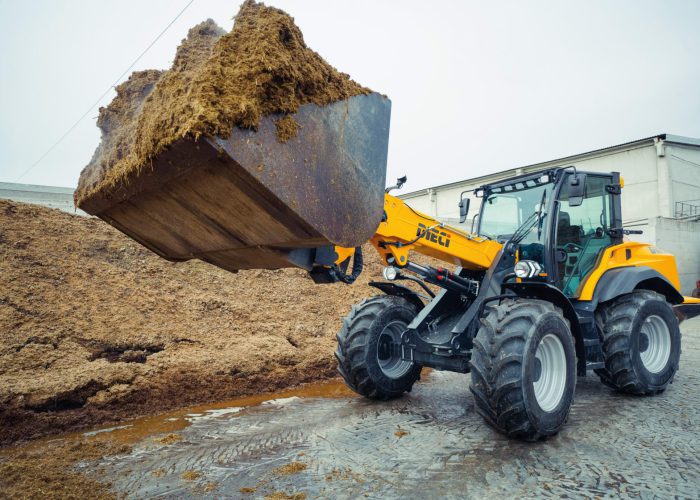

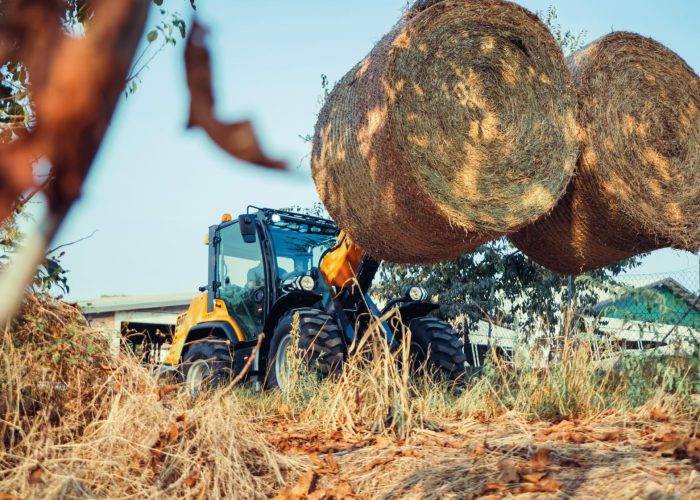

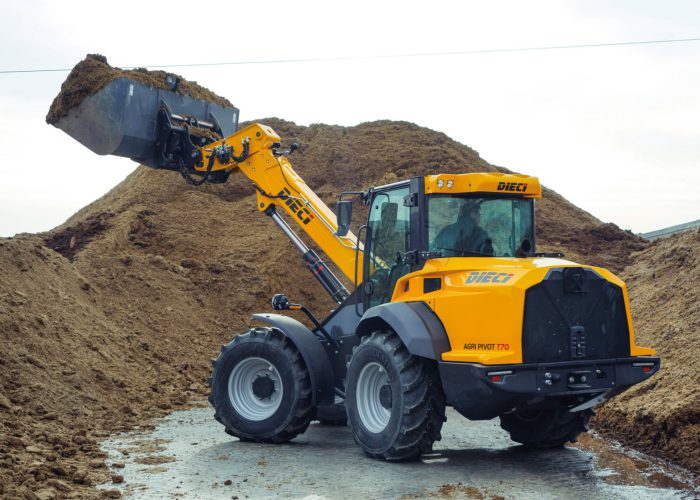

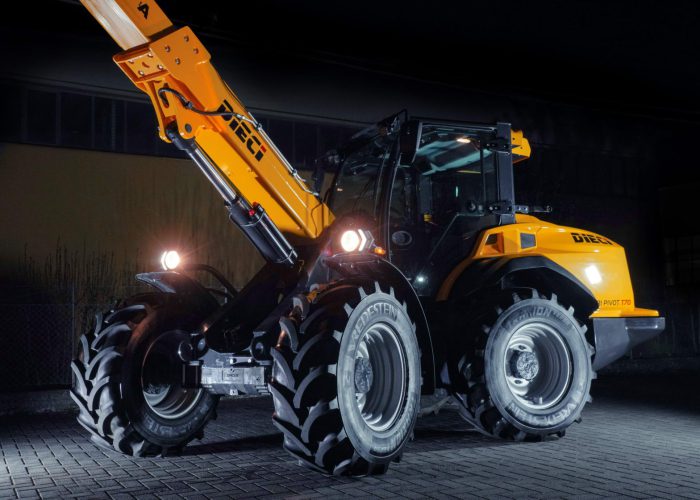

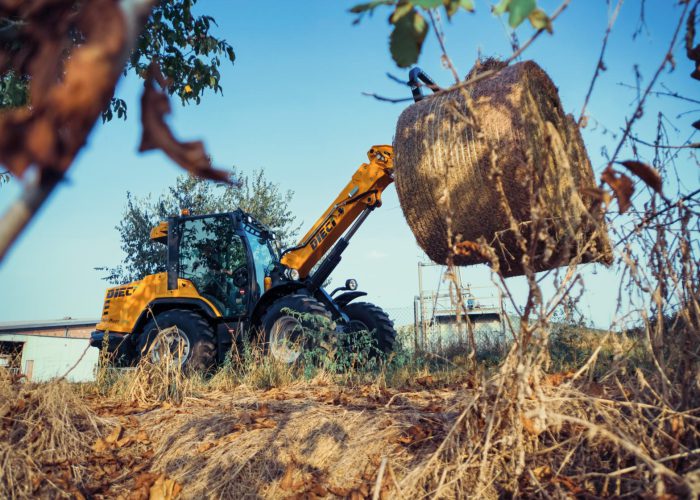

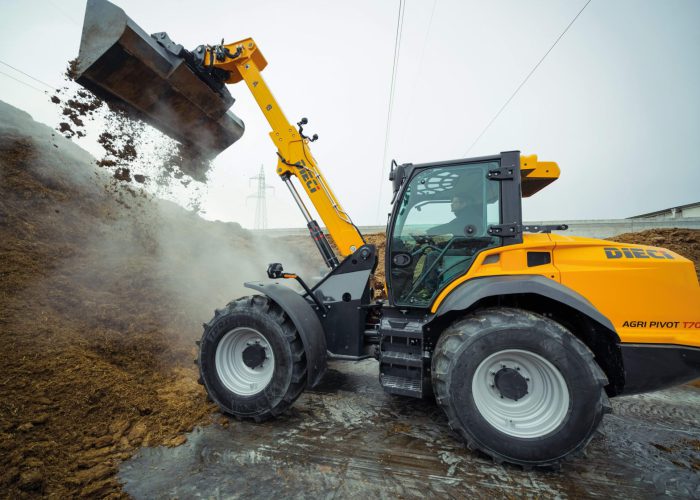

      Agri Pivot T70, the articulated telehandler designed to meet diverse needs. Resembling a wheel loader with a telescopic boom, this telehandler excels in confined spaces, offering high performance at a low operating cost. Its articulated chassis with double-pivot central articulation ensures stability, strength, and manoeuvrability in all directions.

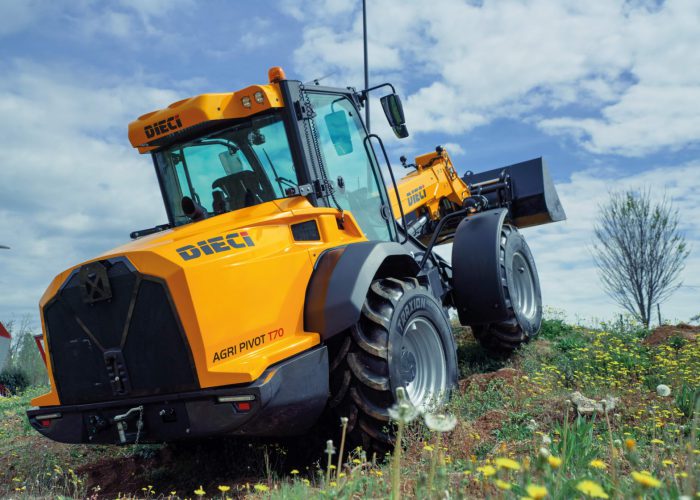

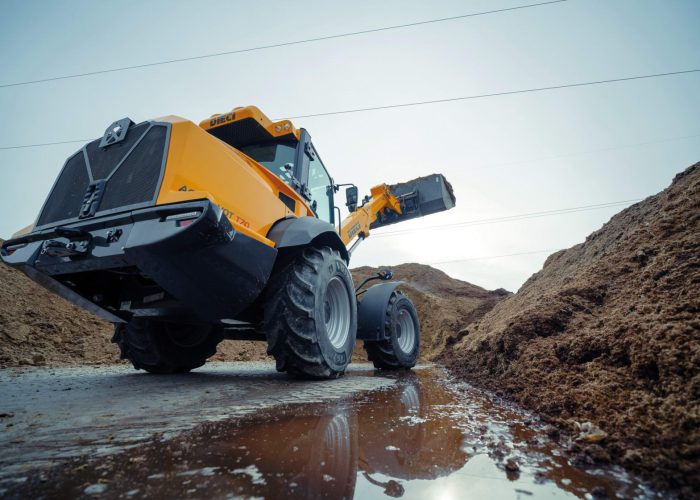

      Featuring a rear engine installed longitudinally and a centre boom pivoted in front of the cab, Agri Pivot enhances accessibility during maintenance and provides optimal side and rear visibility. It serves as the ideal telehandler in sectors requiring both the height capabilities of a telehandler and the agility of a wheel loader. Offering versatility, it accommodates accessories from both classic telehandlers and wheel loaders.

      TECHNICAL

      Specifications

      Length: 5,685 mm

      Width: 2,200 mm

      Height: 2,680 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 5.2 m

      Pull-out force: 6,000 daN

      Towing force: 6,650 daN

      Maximum speed: 40 km/h

      Unladen weight: 7,150 kg

      Brand: Perkins

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,621 cm³

      Nominal power: 85.9 kW (115 hp) @ 2,200 rpm

      Emission standard: Stage V/Tier 4F

      Exhaust gas treatment: DOC+DPF+SCR (with AdBlue)

      Hydraulic pump capacity: 117 L/min

      Maximum operating pressure: 25 MPa

      Transmission type: Electronically controlled hydrostatic shift on fly with gear shift in motion and ECO function

      Standard tyres: 405/70×24”
