Agriculture

Fixed Boom Telehandlers

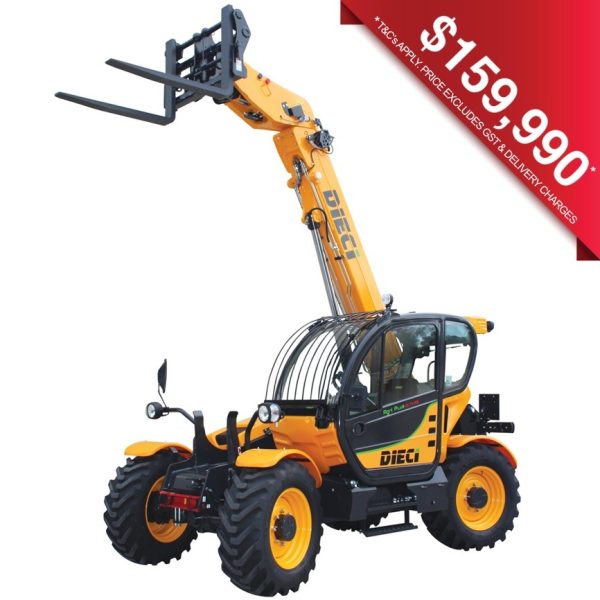

Agri Plus 40.7

Max Capacity:

4,000 kg

Max Lift Height:

7.0 m

Total Weight:

7,700 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT
















      Dieci Zeus Telehandler
      ABOUT

      Product Info

      The Agri Plus 40.7 is designed for heavy and intensive use. The use of the Powershift transmission, combined with the right work mode, allows for the completion of even the most demanding tasks. The combined use of the electronic accelerator and inching pedal makes it possible to move the telehandler forward slowly and in a controlled way, also with the boom at maximum height.

      The 40.7’s ROPS and FOPS approved cab provides a high level of comfort with extra legroom and air suspension seat as well as an integrated electric driver’s window, standard heater and a semi-automatic air conditioning system with six outlet vents, allowing the perfect air circulation inside the cabin for maximum operator comfort.

      TECHNICAL

      Specifications

      Length: 5,075 mm

      Width: 2,310 mm

      Height: 2,445 mm

      Maximum capacity: 4,000 kg

      Maximum lifting height: 7.0 m

      Pull-out force: 6,000 daN

      Towing force: 8,200 daN

      Maximum speed: 40 km/h

      Unladen weight: 7,700 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 190 L/min

      Maximum operating pressure: 25 MPa

      Transmission type: Torque converter with Power Shift EVO2 reversing mechanism and electric control

      Standard tyres: 460/70 x 24″
