Construction

Fixed Boom Telehandlers

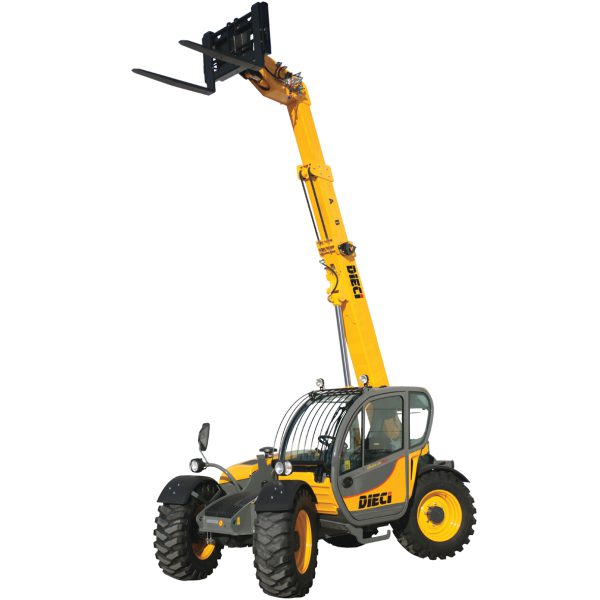

Dedalus 30.7 TCL

Max Capacity:

3,000 kg

Max Lift Height:

6.35 m

Total Weight:

6,100 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

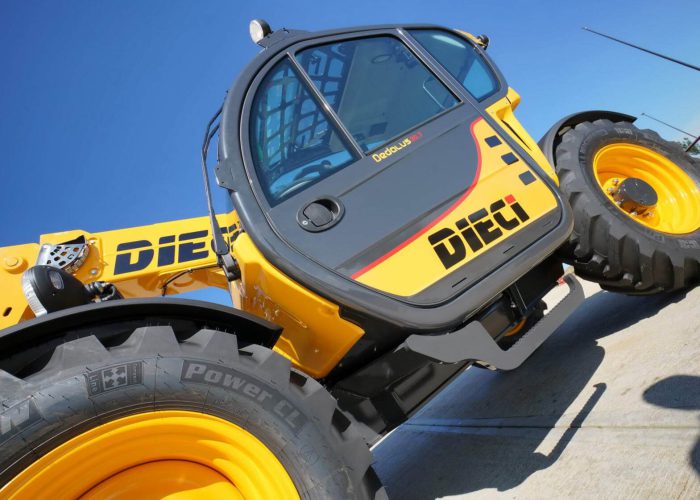

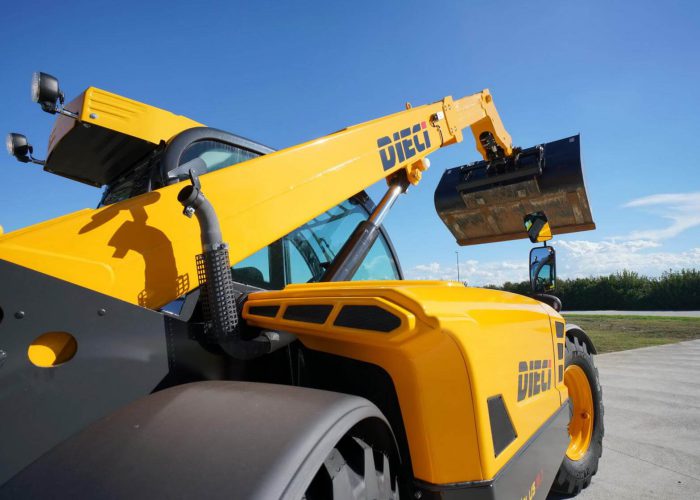

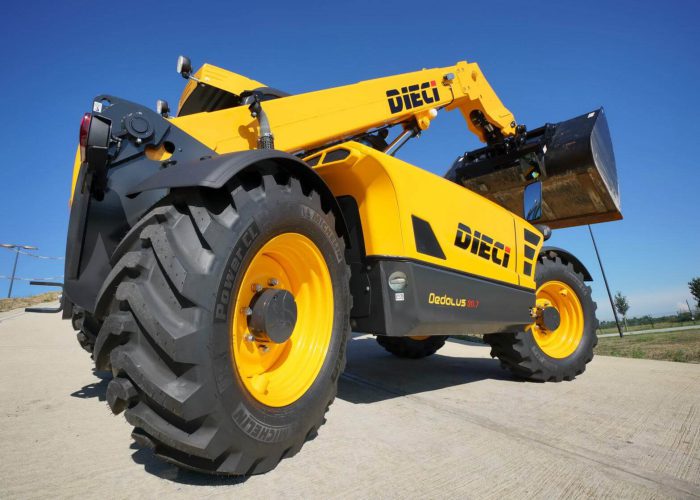

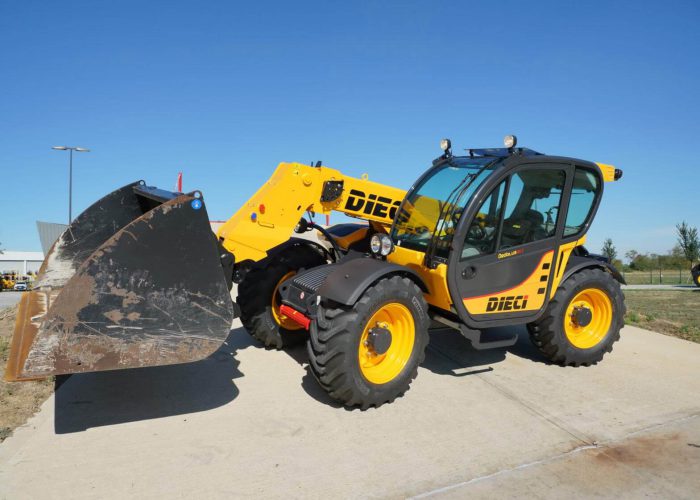

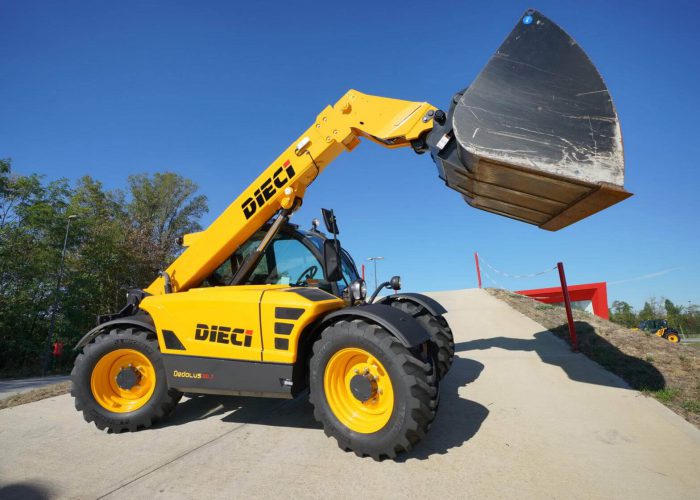

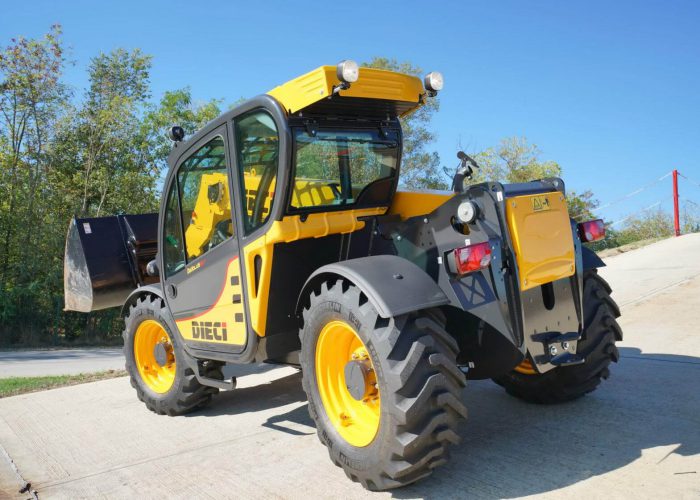

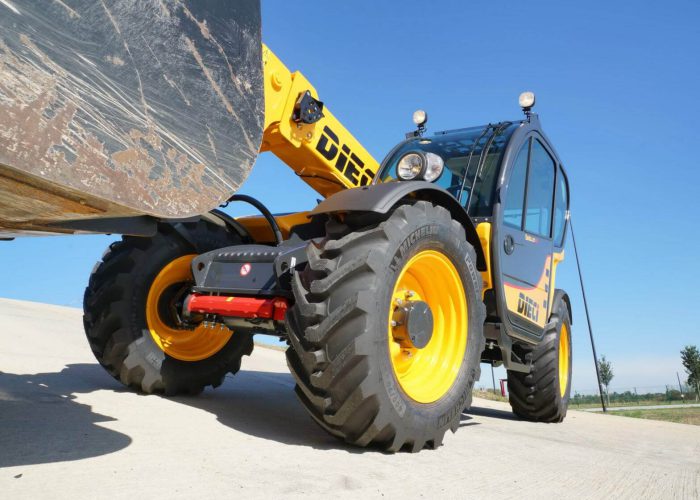

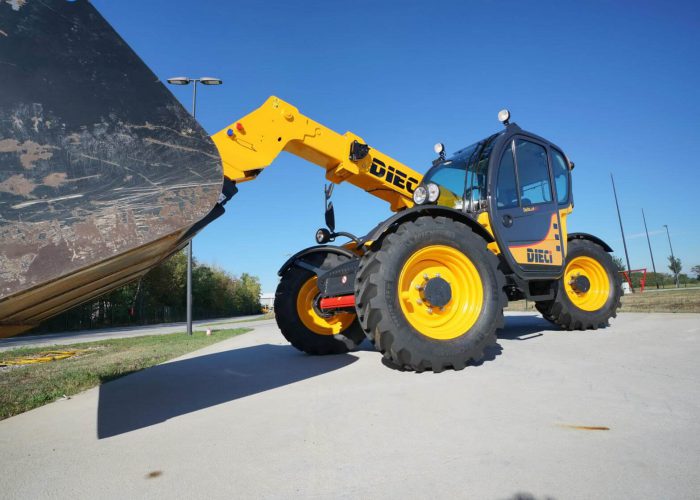

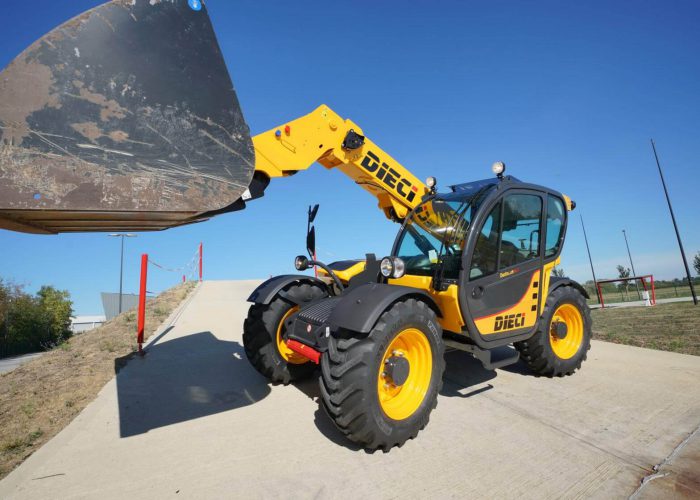

      Dieci Dedalus Telehandler
      ABOUT

      Product Info

      Dedalus telehandlers are particularly suitable for use in road maintenance works, in town centres, underground, and where narrow passages demand strength and agility. The key point of these compact and sturdy telehandlers, with increasing capacities and heights, is their manageability and speed of movement.

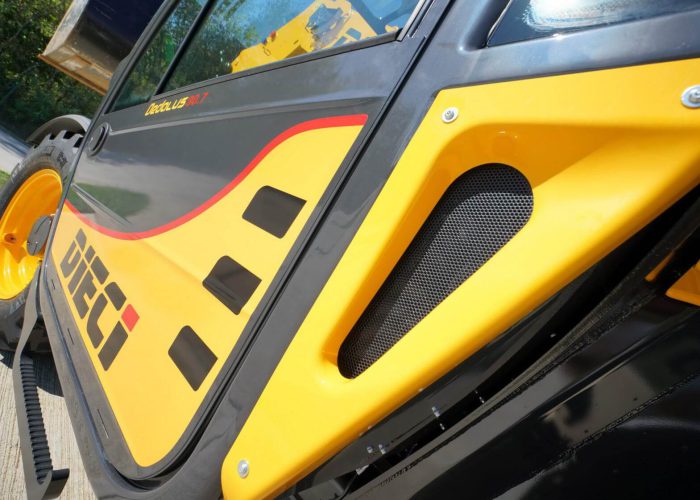

      With a ROPS-FOPS-approved cab and major upgrades in comfort and performance, the Dedalus 30.7 TCL telehandler optimises time, cost, and production cycles. Easy to drive and practical to service, the Dedalus features include high quality interiors, large windows for maximum visibility and a sound-absorbing roof. With its wide range of available attachments, the Dedalus is a versatile, reliable and safe telehandler that can handle all the jobs required on a construction site.

      TECHNICAL

      Specifications

      Length: 4,765 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 6.35 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Liquid: Cooling

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 L/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with electronic control with variable displacement pump and ECO function

      Standard tyres: 12.5×18″
