Mining

Fixed Boom Telehandlers

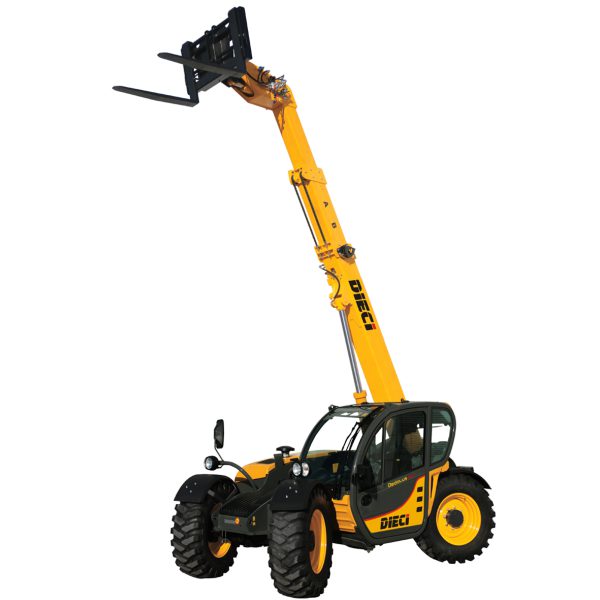

Dedalus 30.7 TCL

Max Capacity:

3,000 kg

Max Lift Height:

6.35 m

Total Weight:

6,100 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota
















      Dieci Dedalus Telehandler
      ABOUT

      Product Info

      The Dedalus telehandlers are purpose-built for the demanding environments of mining and tunnelling operations, where narrow passages and challenging terrain require exceptional strength and agility. These compact and robust telehandlers, equipped with increasing capacities and heights, excel in manoeuvrability and speed of movement, making them indispensable in such settings.

      Featuring a ROPS-FOPS-approved cab and significant enhancements in comfort and performance, the Dedalus 30.7 TCL telehandler is optimised to maximise efficiency in time, cost, and production cycles within mining and tunnelling operations. Designed for ease of operation and maintenance, the Dedalus showcases high-quality interiors, large windows for optimal visibility, and a sound-absorbing roof to minimise noise distractions.

      With its extensive range of available attachments, the Dedalus proves to be a versatile, reliable, and safe telehandler capable of efficiently handling all the tasks required at the harshest of mining sites.

      TECHNICAL

      Specifications

      Length: 4,765 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 6.35 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Liquid: Cooling

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 L/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with electronic control with variable displacement pump and ECO function

      Standard tyres: 12.5×18″
