Construction

Fixed Boom Telehandlers

Dedalus 30.7 TCL | 3t Telehandler

Max Capacity:

3,000 kg

Max Lift Height:

6.35 m

Total Weight:

6,100 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

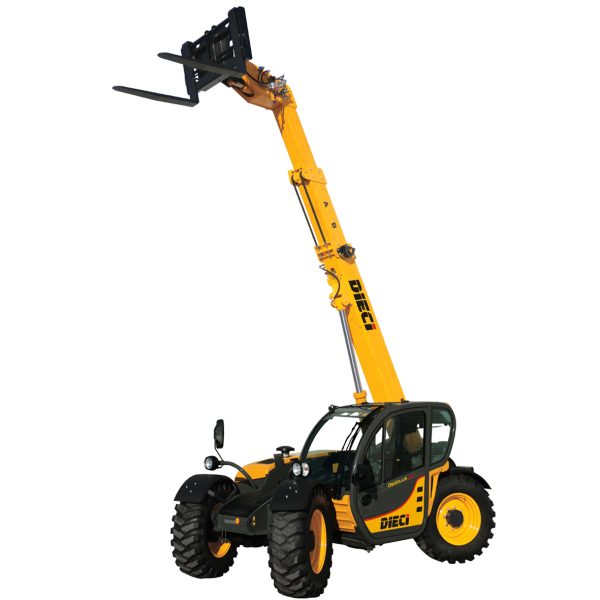

    Dieci Dedalus 30.7 3t Telehandler with a white background and the boom raised

    The Dieci Dedalus 30.7 3t telehandler is particularly suitable for use in road maintenance works, in town centres, underground, and where narrow passages demand strength and agility. The key point of these compact and sturdy telehandlers, with increasing capacities and heights, is their manageability and speed of movement.

    With a ROPS-FOPS-approved cab and major upgrades in comfort and performance, the Dieci Dedalus 30.7 3t telehandler optimises time, cost, and production cycles. Easy to drive and practical to service, the Dedalus features include high quality interiors, large windows for maximum visibility and a sound-absorbing roof. With its wide range of available attachments, the Dedalus is a versatile, reliable and safe telehandler that can handle all the jobs required on a construction site.

    3t Telehandler

    Civil works: Suited for civil works such as waste management, moving light material loads, and clearing loose materials onsite. (Remove the words Small & Minor)

    Events: Effective for event setup and pack-down, including moving staging, barriers, lighting towers, and equipment.

    Waste management: Capable of safely lifting, positioning, and emptying skip bins, supporting efficient waste management on construction sites and during clean-up operations.

    Click here to view our full range of 2-7t telehandlers

    Request a Follow-up From Your Local Dieci Sales Team






      Dedalus 30.7 | 3t Telehandler Frequently Asked Questions

      What engine powers the Dieci Dedalus 30.7 Telehandler?

      The Dieci Dedalus 30.7 3t telehandler is powered by a Kubota 4-cylinder diesel engine producing 98 hp (73.4 kW). This engine meets Stage IIIA / Tier 3 emissions standards and is known for its power, reliability, and efficiency.

      Yes. The cab includes panoramic visibility, soundproofing, adjustable steering wheel, optional air suspension seat and a semi-automatic air conditioning system for all-day comfort.

      The Dedalus 30.7 uses a hydrostatic transmission with a servo-controlled two-speed gearbox, providing smooth control and strong low-speed torque.

      Specifications

      Length: 4,765 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 6.35 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,100 kg

      Brand: Kubota

      Fuelling: Diesel

      Liquid: Cooling

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 l/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 12.5 x 18″







        side of the Dieci Dedalus 3t Telehandler
        Lower view of the Dieci Dedalus 3t Telehandler
        Side view of the door of the Dieci Dedalus 3t Telehandler

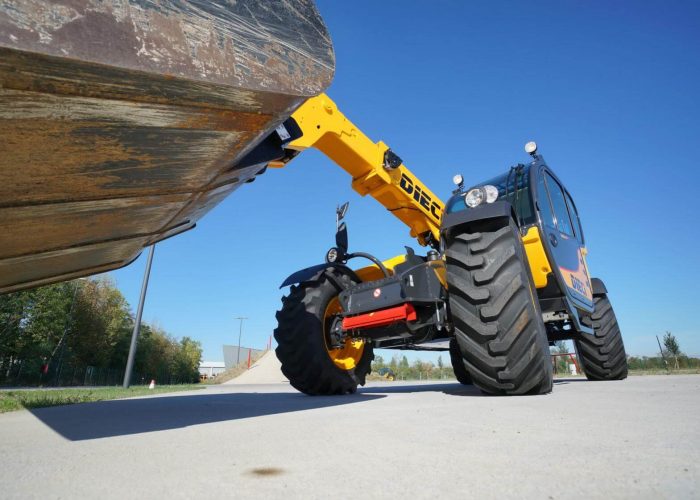

        Front view of the Dieci Dedalus 30.7 3t Telehandler holding a large bucket on a construction site in Australia
        Left side view of the Dieci Dedalus 3t Telehandler holding a large bucket on a project site in Sydney Australia
        Right rear view of the Dieci Dedalus 3t Telehandler with its bucket in the air
        Right side view of the Dieci Dedalus 3t Telehandler showing its off road tyres

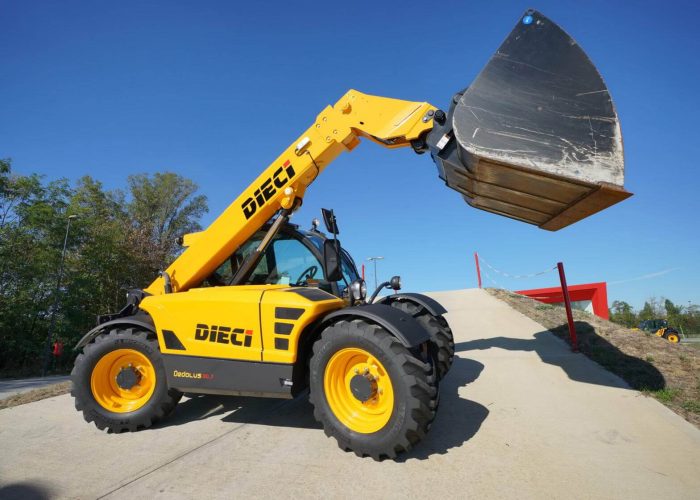

        Right side view of Dieci Dedalus 30.7 3t Telehandler with its excavation bucket raised in the air holding 3tonnes of material

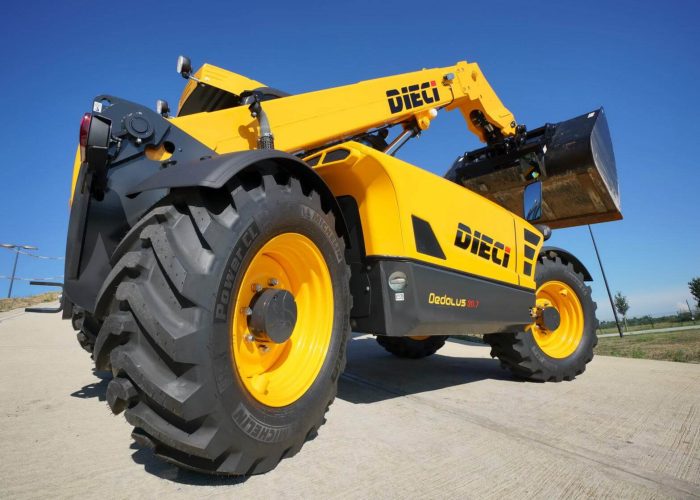

        right rear view of the Dieci Dedalus 30.7 3t Telehandler showing its 4-wheel steering function
        Front left view of the Dieci Dedalus 3t Telehandler
        Left side view of the Dieci Dedalus 3t Telehandler showing its cab door
        Left rear view of Dieci Dedalus 3t Telehandler in Melbourne Australia
        left front view of Dieci Dedalus 3t Telehandler

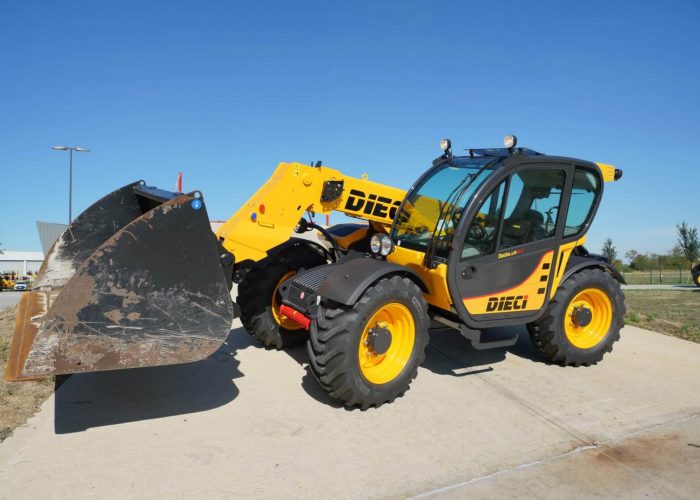

        Left front view of a Dieci Dedalus 30.7 3t Telehandler showing its doors, wheels and boom
        Front left view of Dieci Dedalus 3t Telehandler
        Left side view of Dieci Dedalus 30.7 3t Telehandler with its bucket lowered after working in Melbourne Australia
