Dedalus 30.9 TCL Construction Telehandler

Max Capacity:

3,000 kg

Max Lift Height:

8.7 m

Total Weight:

6,250 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

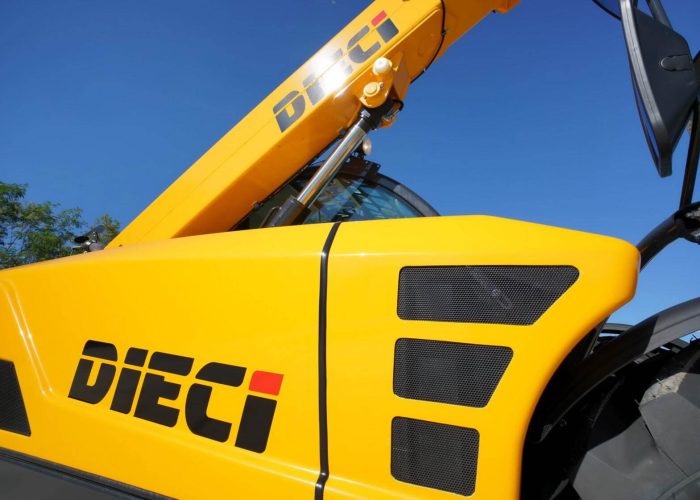

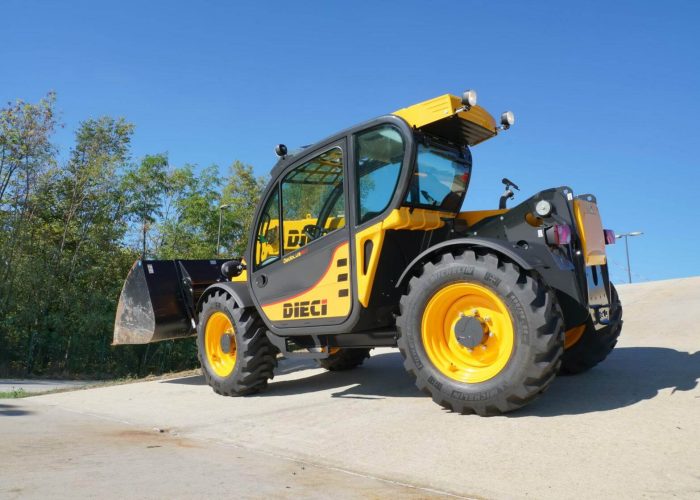

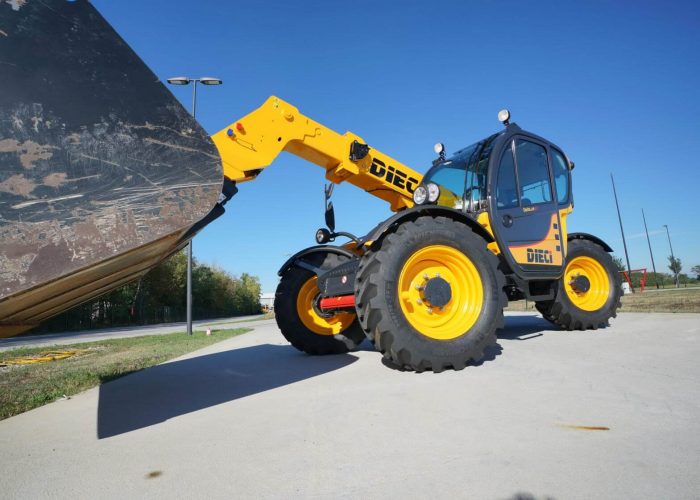

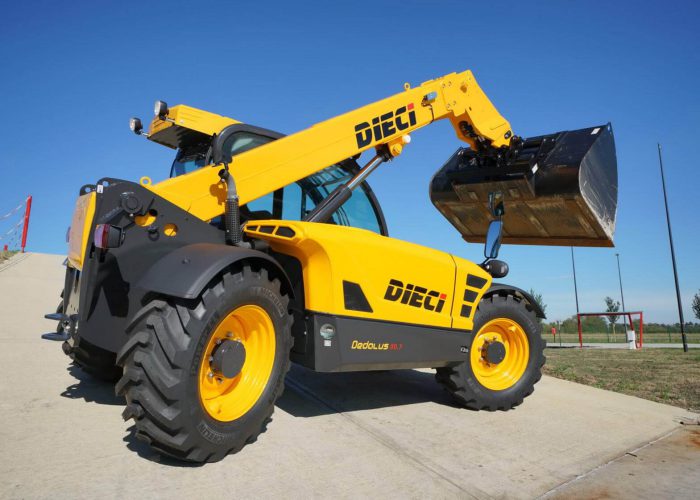

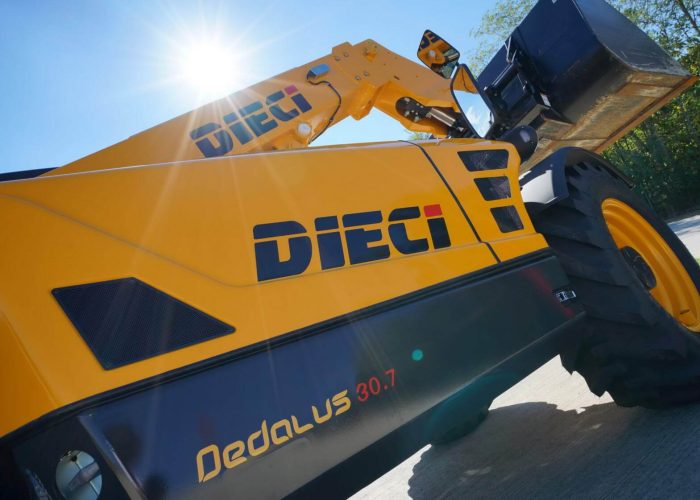

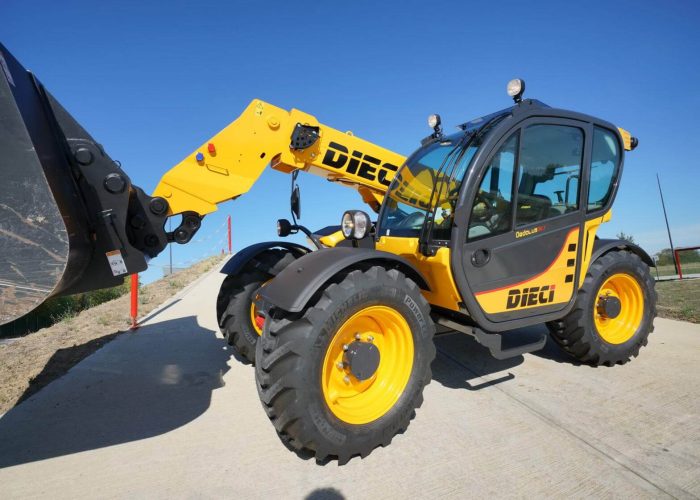

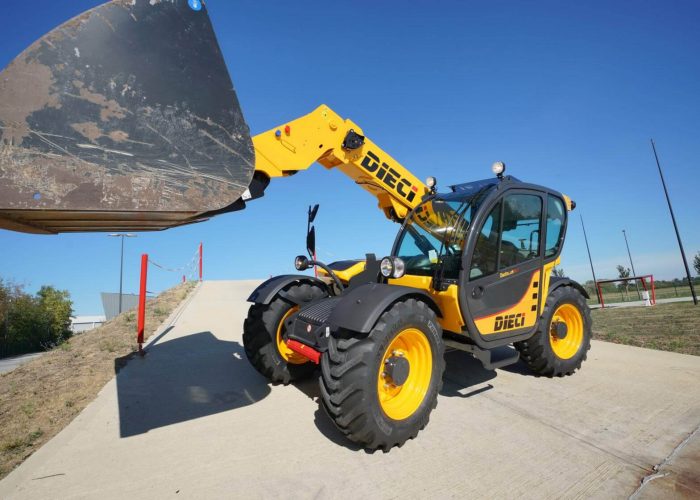

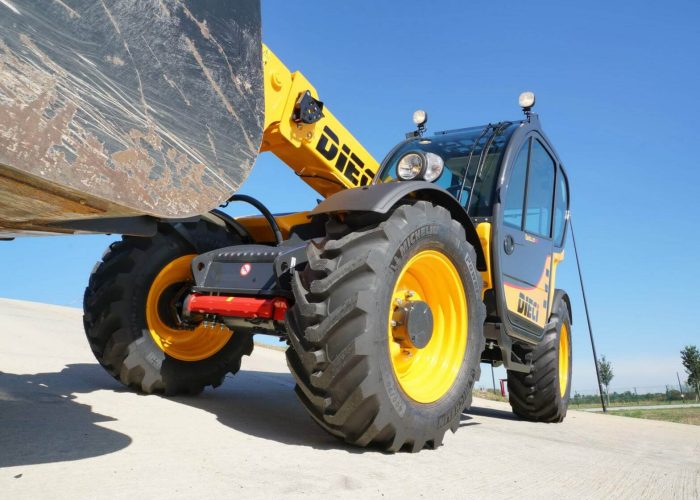

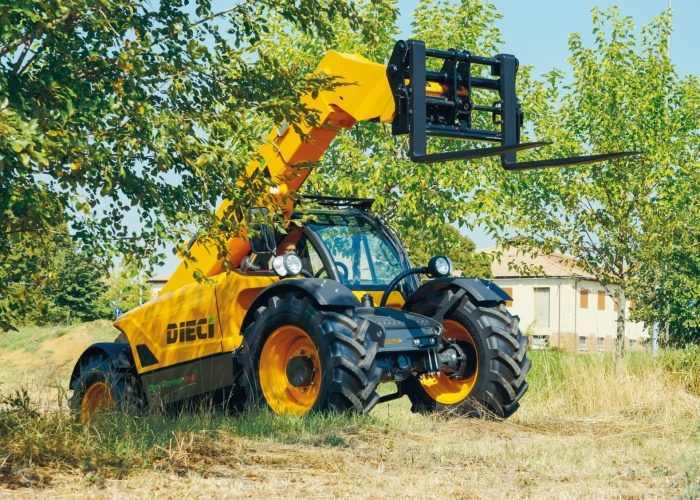

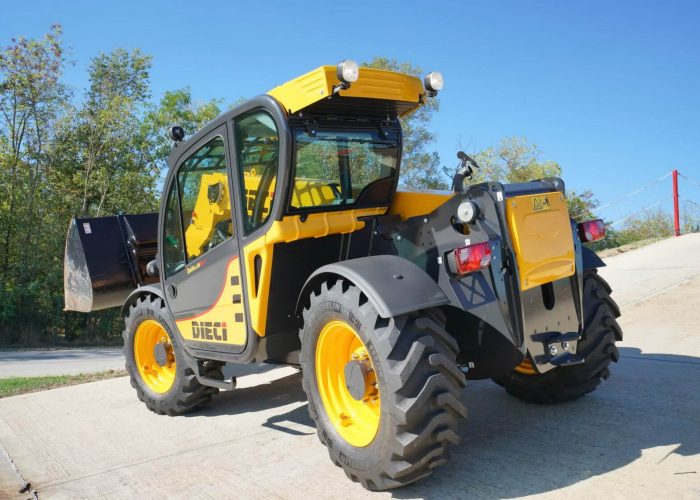

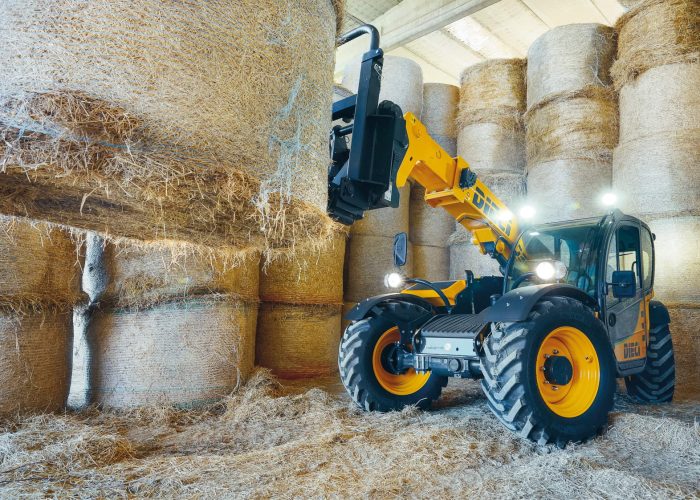

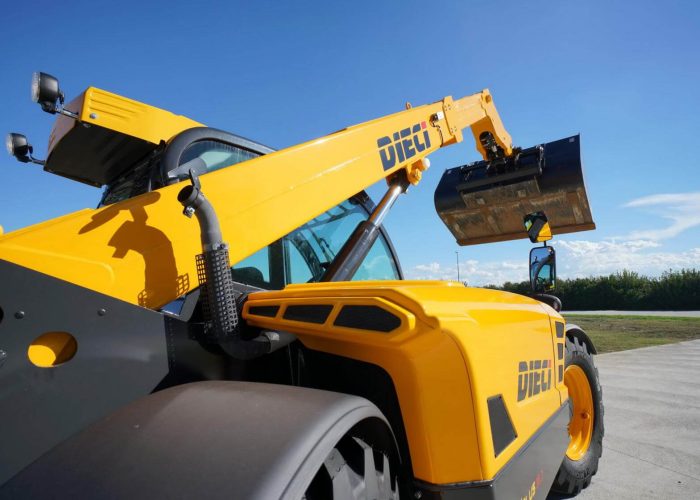

    Dieci Dedalus Telehandler

    Dedalus stands out as the most agile option among Dieci’s construction telehandlers. Specifically engineered for civil, industrial, commercial, residential and infrastructure construction sites that demand tight spaces, strength and agility. The core features of the robust and compact Dedalus range is their increasing capacities and heights, lies in their ease of handling and swift mobility.

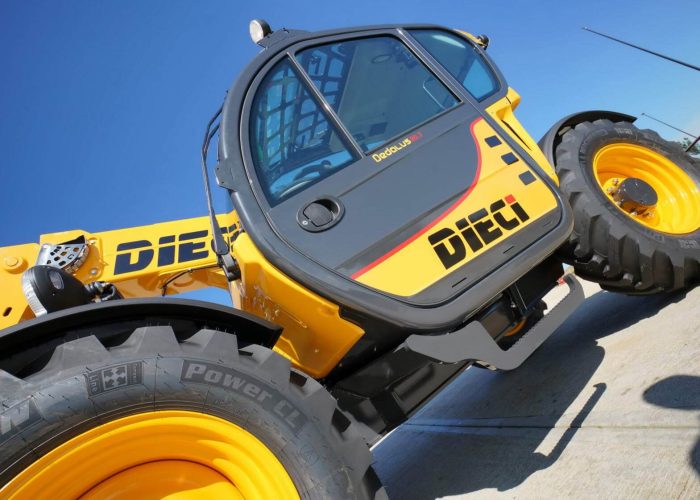

    Equipped with a ROPS-FOPS-approved cab and significant enhancements in comfort and performance, this telehandler maximises efficiency in time, cost, and production cycles. It’s user-friendly and low-maintenance, offering operators a dependable, secure, and adaptable machine. With its diverse range of attachments, it’s well-suited to handle all tasks necessary on a construction site.

    Specifications

    Length: 4,775 mm

    Width: 2,000 mm

    Height: 2,040 mm

    Maximum capacity: 3,000 kg

    Maximum lifting height: 8.7 m

    Pull-out force: 5,700 daN

    Towing force: 5,500 daN

    Maximum speed: 35 km/h

    Unladen weight: 6,250 kg

    Brand: Kubota

    Fuelling: Diesel

    Cooling: Liquid

    Displacement: 3,769 cm³

    Nominal power: 73.4 kW (98 hp)

    RPM at nominal power: 2,600 rpm

    Emission standard: Stage IIIA/Tier 3

    Hydraulic pump capacity: 115 l/min

    Maximum operating pressure: 24.5 MPa

    Transmission type: Hydrostatic with variable displacement pump

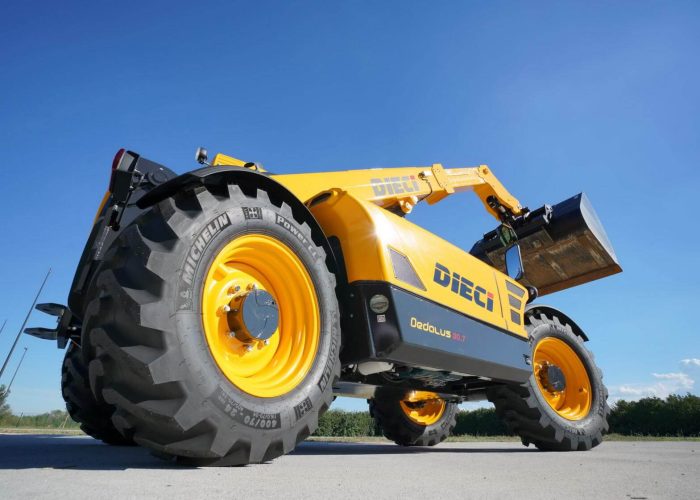

    Standard tyres: 12.5 x 18″
