Mining

Fixed Boom Telehandlers

Dedalus 30.9 TCL

Max Capacity:

3,000 kg

Max Lift Height:

8.6 m

Total Weight:

6,250 kg

Max Power:

73.4 kW (98 hp)

Engine Brand:

Kubota

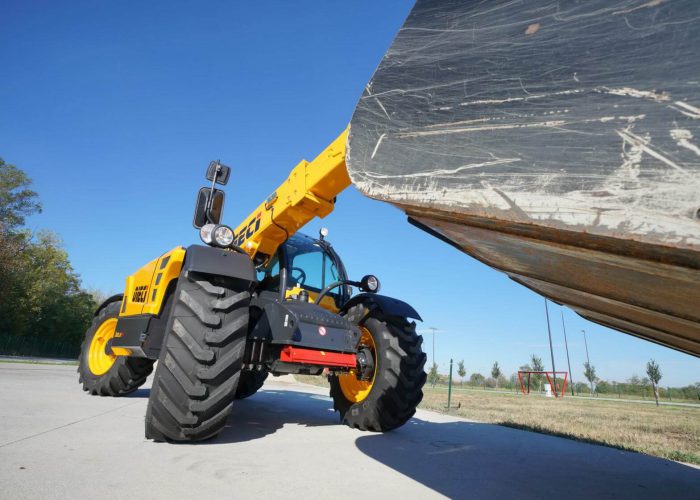

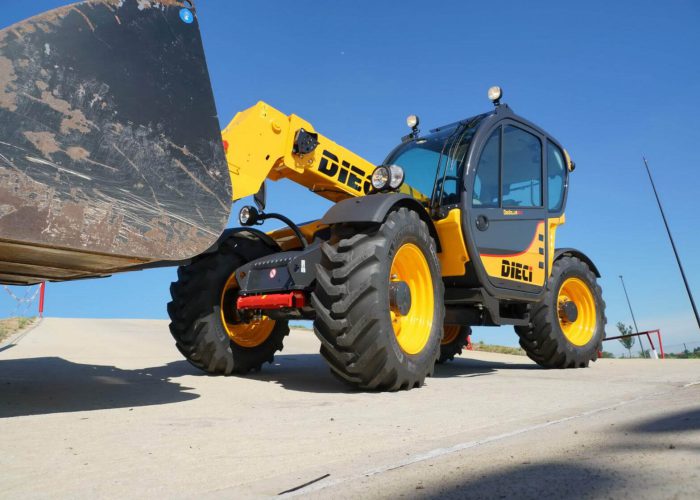

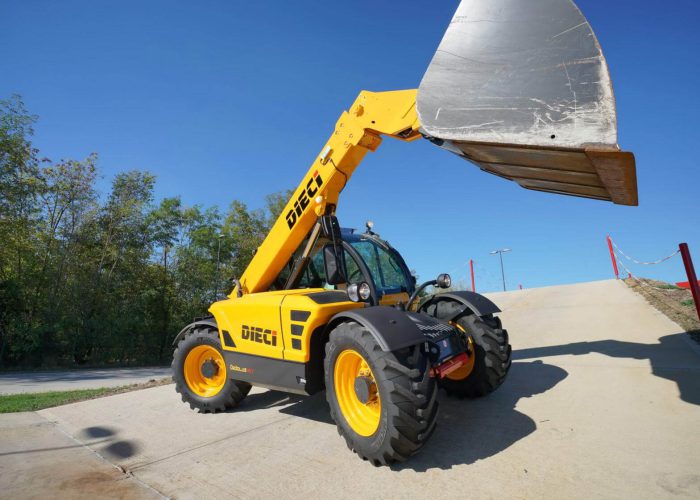

      Dieci Dedalus Telehandler
      ABOUT

      Product Info

      The Dedalus 30.9 TCL is engineered to excel in the challenging environments of mining operations. Renowned for its agility, it surpasses all other Dieci telehandlers in manoeuvrability, making it ideal for navigating the tight spaces commonly found in mining sites.

      Featuring robust construction and a compact design, these telehandlers boast increasing capacities and heights, ensuring they can handle the rigors of mining tasks with ease. Equipped with a ROPS-FOPS-approved cab and enhanced comfort and performance features, the Dedalus telehandlers optimise efficiency in time, cost and production cycles in mining operations.

      Designed for ease of use and low maintenance, the Dedalus series provides operators with a dependable, secure, and adaptable machine for mining tasks. With a diverse range of attachments tailored for mining applications, the Dedalus telehandlers are well-equipped to handle all necessary tasks.

      TECHNICAL

      Specifications

      Length: 4,775 mm

      Width: 2,000 mm

      Height: 2,040 mm

      Maximum capacity: 3,000 kg

      Maximum lifting height: 8.6 m

      Pull-out force: 5,700 daN

      Towing force: 5,500 daN

      Maximum speed: 35 km/h

      Unladen weight: 6,250 kg

      Brand: Kubota

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 3,769 cm³

      Nominal power: 73.4 kW (98 hp)

      RPM at nominal power: 2,600 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 115 L/min

      Maximum operating pressure: 24.5 MPa

      Transmission type: Hydrostatic with electronic control with variable displacement pump and ECO function

      Standard tyres: 12.5×18″
