Fixed Boom Telehandlers

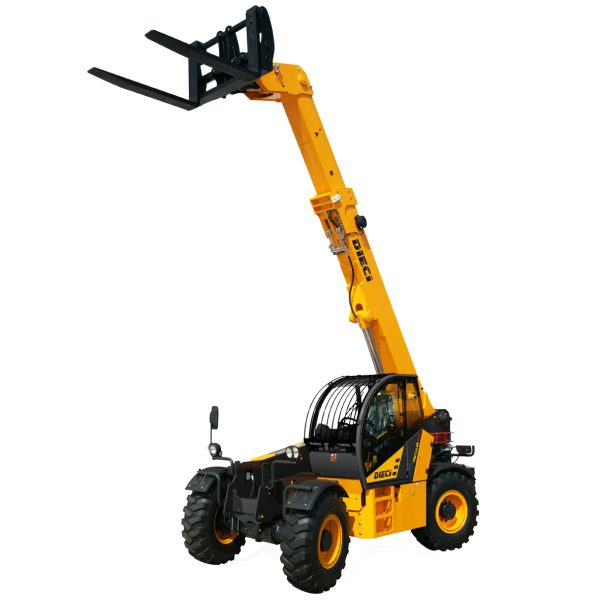

Hercules 120.10

Max Capacity:

12,000 kg

Max Lift Height:

9.5 m

Total Weight:

17,000 kg

Max Power:

107 kW (143 hp)

Engine Brand:




      Dieci Hercules Telehandler

      Product Info

      The Hercules 120.10 strength pushes past all boundaries regarding load capacity, achieving a maximum payload of up to 12 tonnes and a height of 9.5 meters. Its strength, stability, and durability make this telescopic handler a renowned choice for heavy-duty tasks.

      With optimal performance, extreme power, precise movement control, and soundproofing for ultimate comfort, it offers 2WS / 4WS / crab steering modes. Maintenance is simplified with durable components requiring replacement only after several hundred hours of use.

      The Hercules range of telehandlers offers versatility with a wide selection of accessories, such as winches, forks, buckets, EWPs, bale clamps, cylinder grabs, and wheel handlers, catering to specific needs or requirements.



      Length: 6,050 mm

      Width: 2,420 mm

      Height: 2,890 mm

      Maximum capacity: 12,000 kg

      Maximum lifting height: 9.5 m

      Pull-out force: 9,700 daN

      Towing force: 11,000 daN

      Maximum speed: 35 km/h

      Unladen weight: 16,800 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement:4,485 cm³

      Nominal power: 107 kW (143 hp)

      RPM at nominal power: 2,000 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 160 L/min

      Maximum operating pressure: 30 MPa

      Transmission type: Hydrostatic with variable flow pump

      Standard tyres: 17.5×25”
