Hercules 210.10

Max Capacity:

21,000 kg

Max Lift Height:

10.2 m

Total Weight:

27,500 kg

Max Power:

129 kW (173 hp)

Engine Brand:

FPT

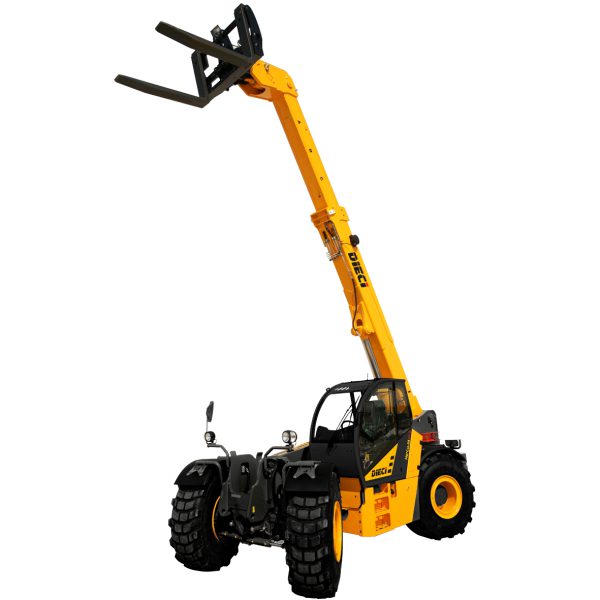

      Dieci Hercules Telehandler
      ABOUT

      Product Info

      The Hercules family, the strongest of the Dieci mining telehandlers, breaks all limits in terms of load capacity, reaching a maximum payload of up to 21 tonnes and towering heights of 10 meters. Built for heavy-duty tasks, this telescopic handler embodies strength, stability, and robustness, earning its status as the “Giant” workhorse.

      The Hercules 210.10 comes equipped with hydrostatic transmission and a central differential that allows the machine to compensate for the wheel rolling differences on the front and rear axles, minimising efforts and achieving great fuel efficiency.

      This model is also fitted with a LOAD SENSING – FLOW SHARING proportional distributor with electronic control, boom raising regenerative system which increases the boom lifting speed and an “inching” pedal command exclusive to the Dieci range, which allows the vehicles to run at slow speed with the engine at full throttle.







      TECHNICAL

      Specifications

      Length:6,800 mm

      Width:2,700 mm

      Height: 2,930 mm

      Maximum capacity: 21,000 kg

      Maximum lifting height: 10.2 m

      Pull-out force: 18,900 daN

      Towing force: 19,500 daN

      Maximum speed: 23 km/h

      Unladen weight: 24,500 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 6,728 cm³

      Nominal power: 129 kW (173 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 170 L/min

      Maximum operating pressure: 35 MPa

      Transmission type: Hydrostatic with variable flow pump

      Standard tyres: 23.5×25″
