Fixed Boom Telehandlers

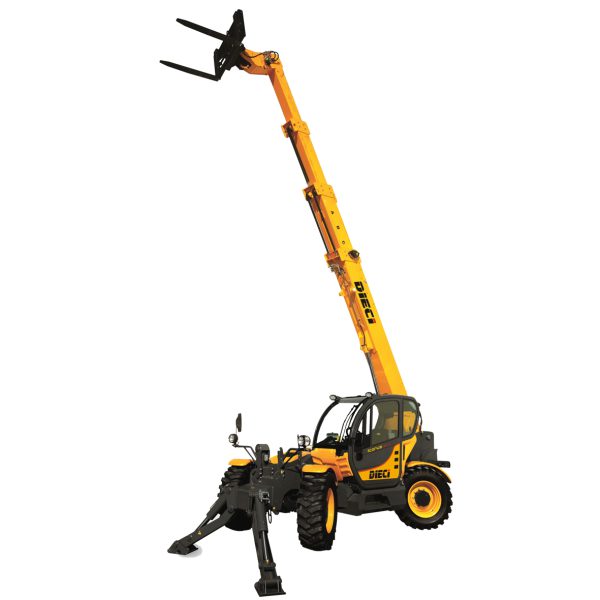

Icarus 40.17

Max Capacity:

4,000 kg

Max Lift Height:

16.9 m

Total Weight:

12,260 kg

Max Power:

93 kW (125 hp)

Engine Brand:




      Dieci Icarus Telehandler

      Product Info

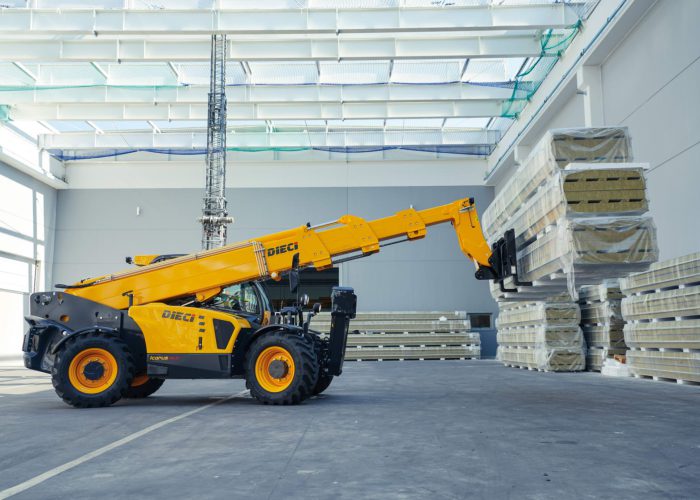

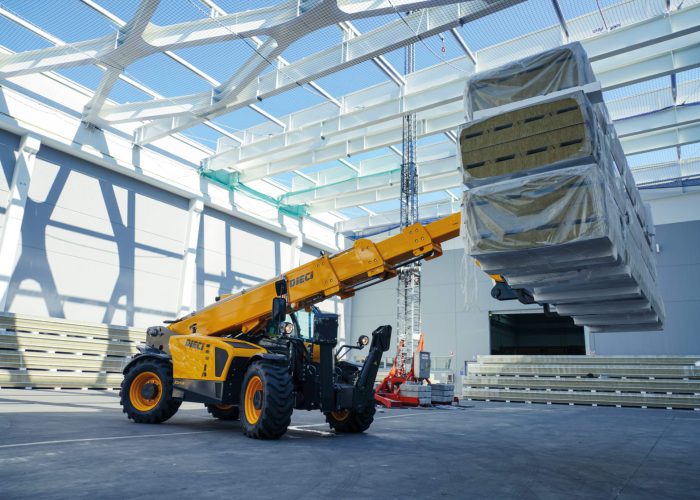

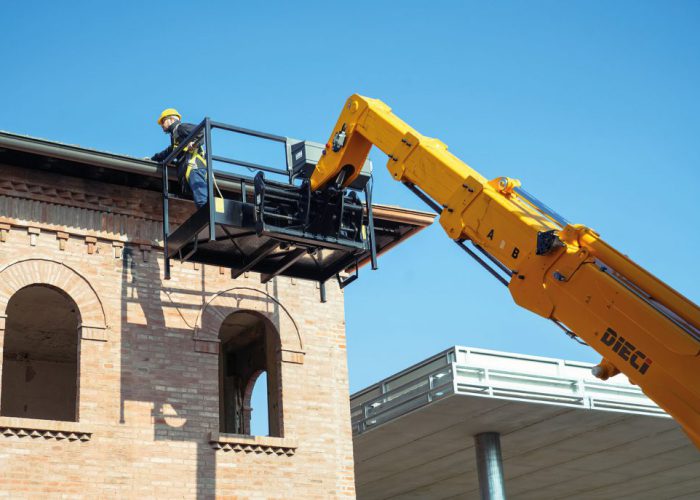

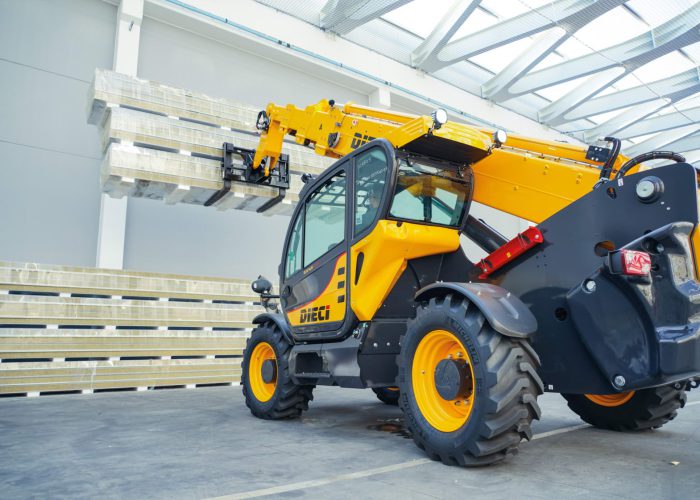

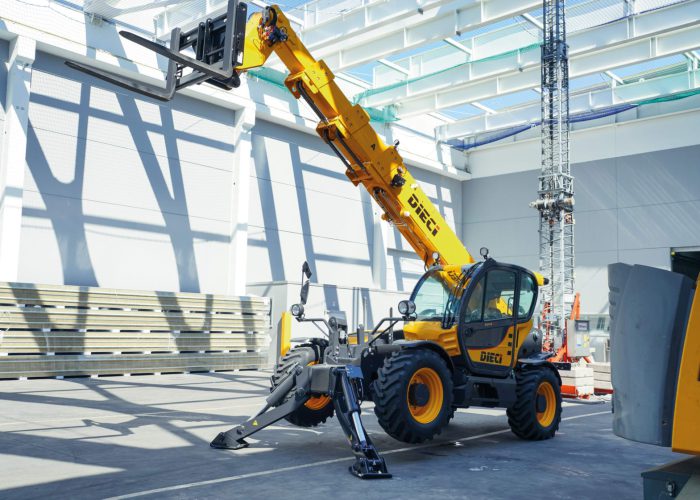

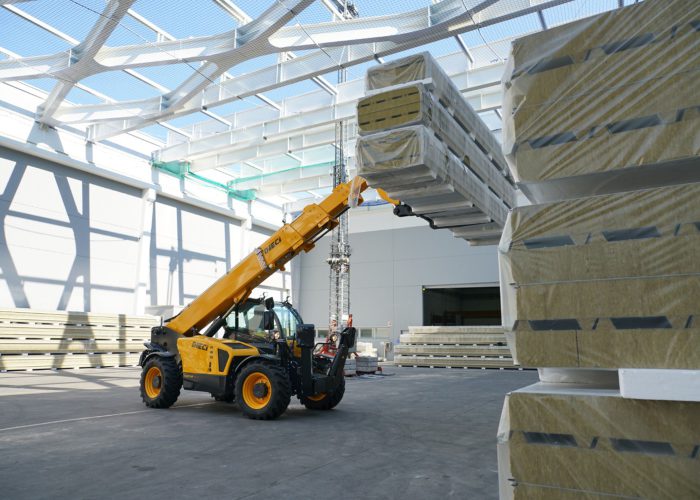

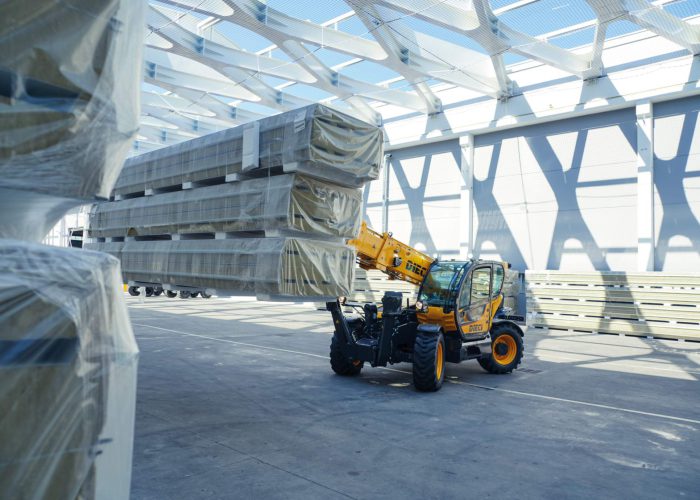

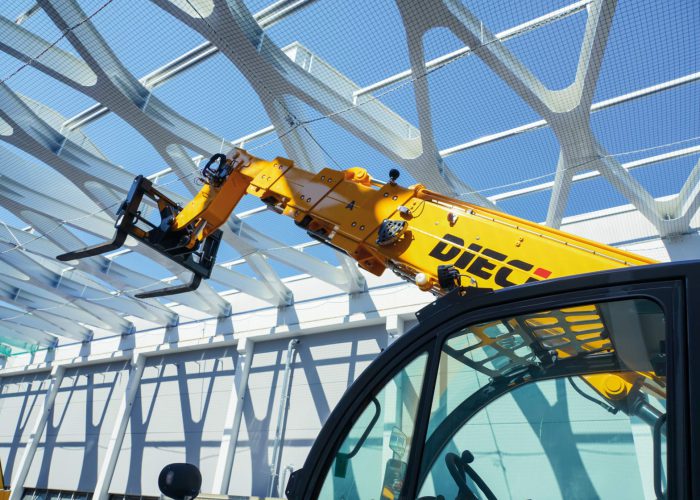

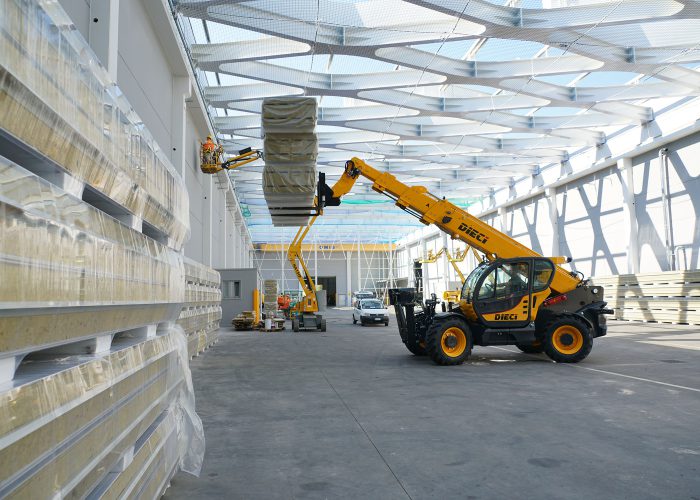

      Icarus 40.17, the telehandler that reaches great heights. The strong and durable boom provides high reliability, while the independent outriggers ensure maximum stability on uneven or rough terrain. This telehandler is prepared for the use of a wide range of attachments such as forks, loaders, lifting hooks, jibs with winches, grippers, material baskets, mixing buckets, concrete ladles and sweepers. Automatic equipment recognition streamlines operations, allowing the vehicle to configure itself automatically based on attached equipment.

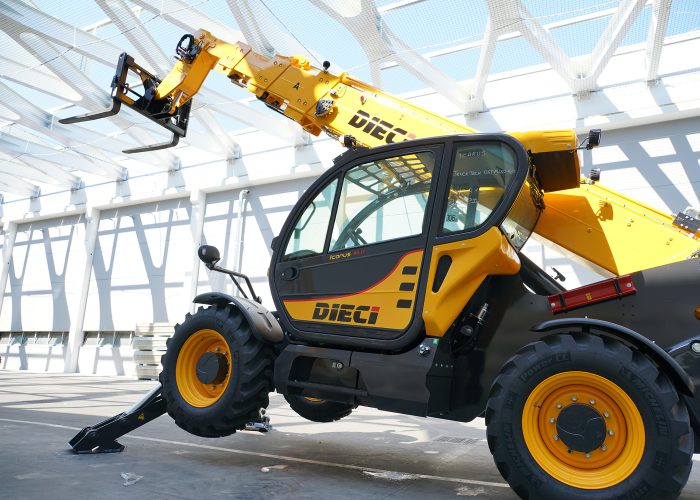

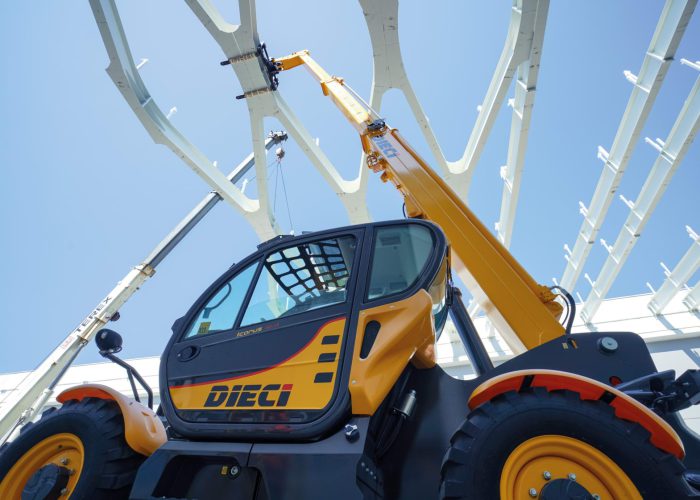

      The ROPS-FOPS-approved cab is equipped with comprehensive safety features and designed to deliver exceptional comfort. Control of all boom movements is centralized through a single-lever joystick, providing intuitive and precise operation. The dashboard features a clear instrument panel with well-distributed controls, while all vehicle functions are managed by a single control unit equipped with advanced diagnostic capabilities to optimise performance.

      Additionally, the engine hood is engineered to minimise noise emissions and optimise heat dissipation. To address the harsh environments of mining and tunnelling, the Icarus 40.17 includes a separator pre-filter applied to the air filter, preventing the ingress of dust and abrasive particles, thereby improving efficiency and prolonging the telehandler’s lifespan.



      Length: 6,275 mm

      Width: 2,360 mm

      Height: 2,550 mm

      Maximum capacity: 4,000 kg

      Maximum lifting height: 16.6m

      Pull-out force: 5,700 daN

      Towing force: 7,300daN

      Maximum speed: 35 km/h

      Unladen weight: 12,260 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 L/min

      Maximum operating pressure: 25.0 MPa

      Transmission type: Hydrostatic with variable flow pump

      Standard tyres: 400/70×24”
