Mixer Truck F 7000

Max Capacity:

850L

Total Weight:

7,400 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

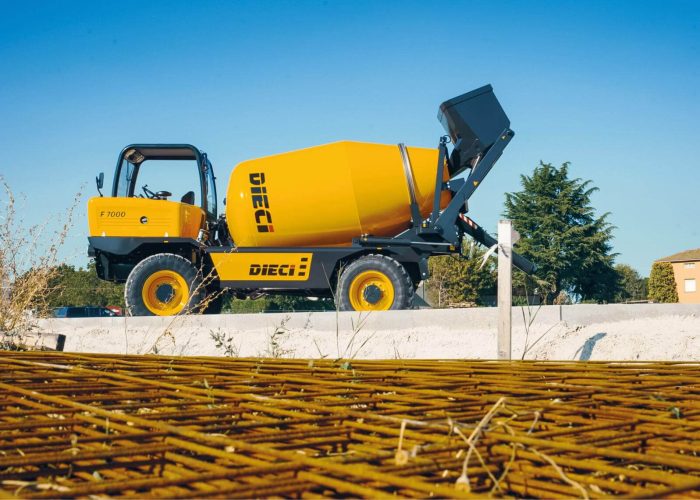

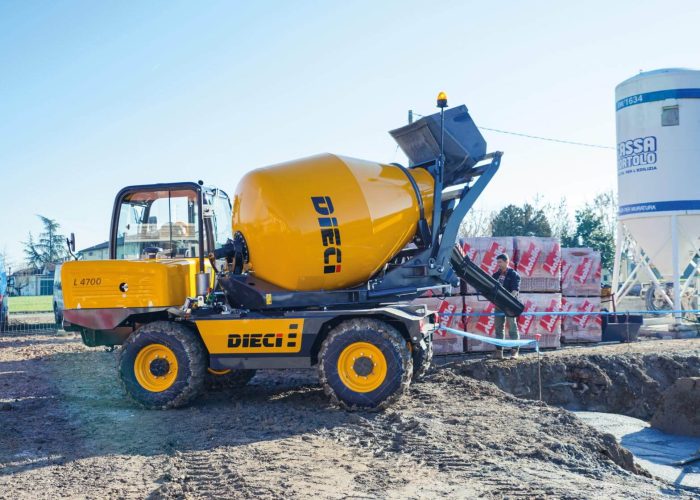

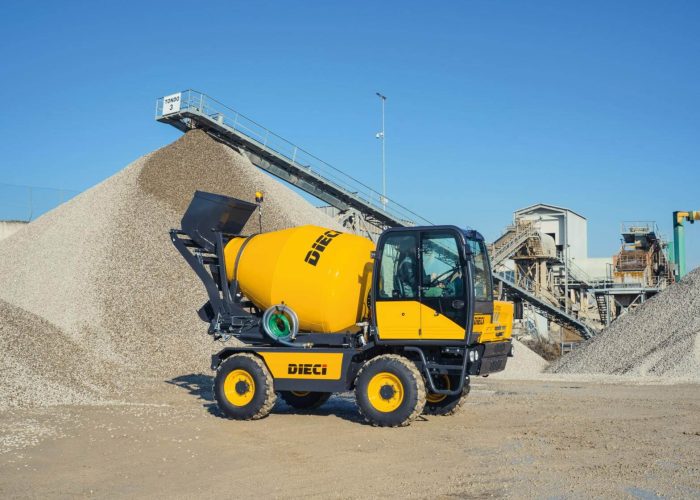

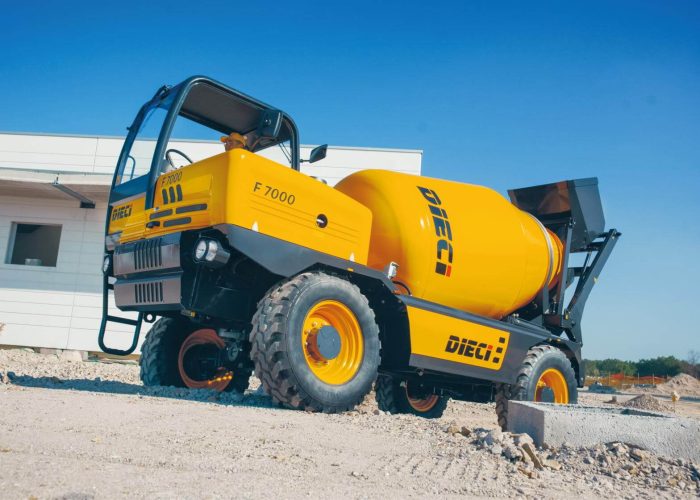

      Dieci Truck Mixer F7000
      ABOUT

      Product Info

      The F 7000 is the largest model of the Dieci mixer series specifically designed for heavy and intensive use.

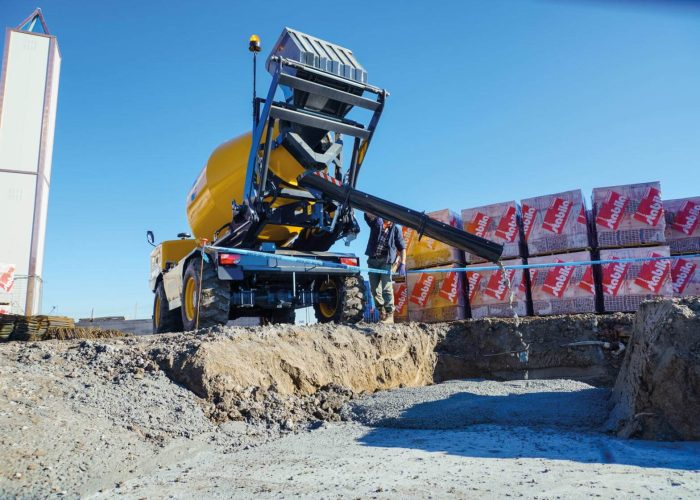

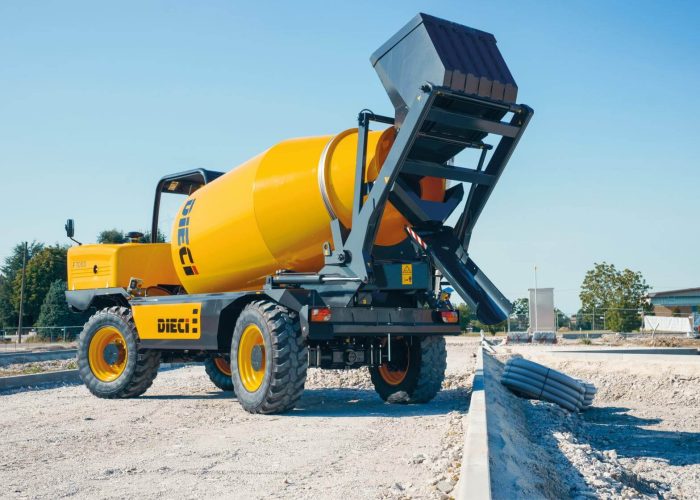

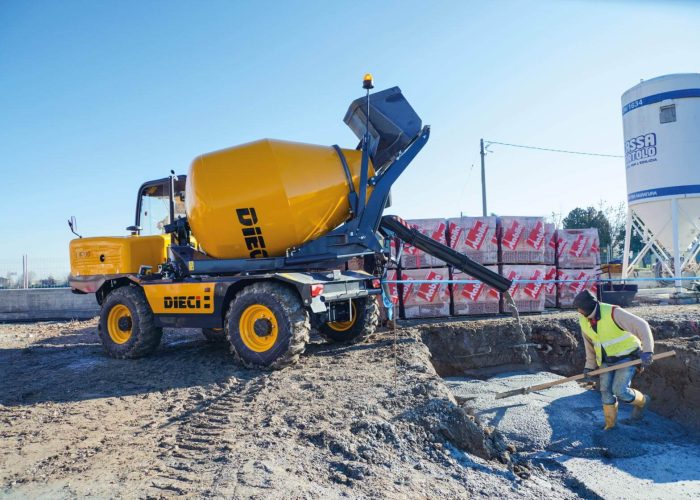

      This model is equipped with a self-locking rear axle, servo- controlled 2 speed gearbox, hydrostatic transmission, 4 driving and steering wheels with braking on all, oil-bath disc brakes, discharge chute adjustable in height and with 180° rotation.

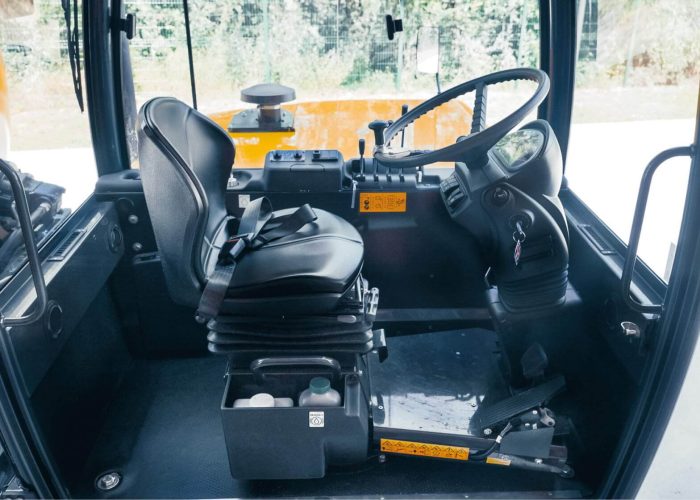

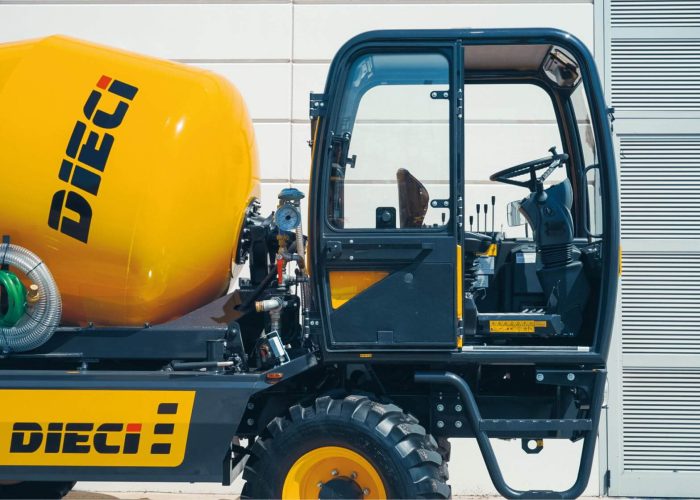

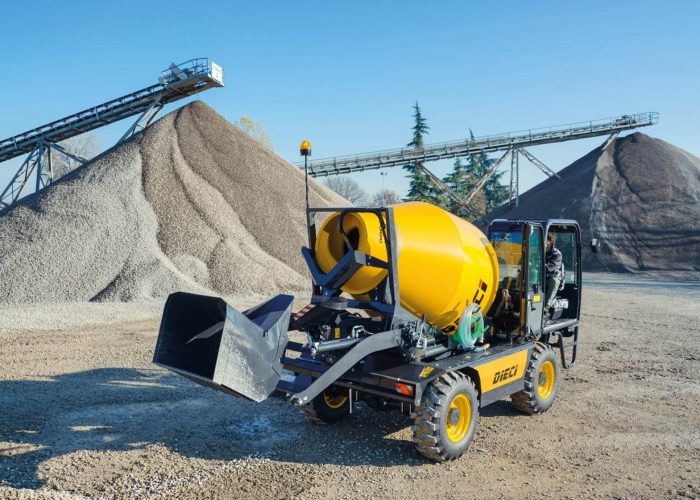

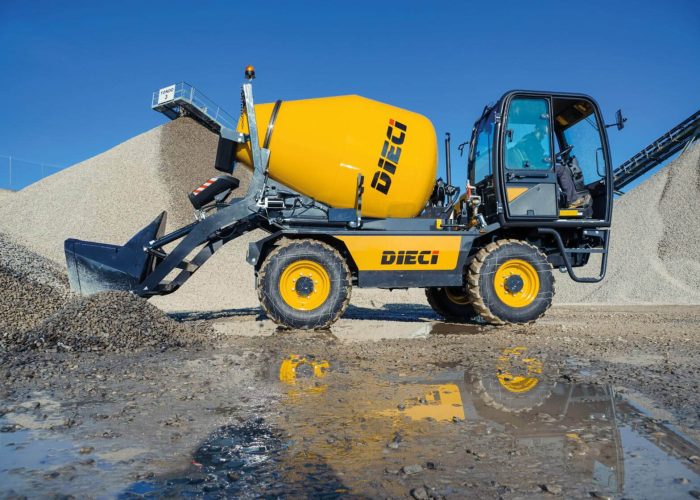

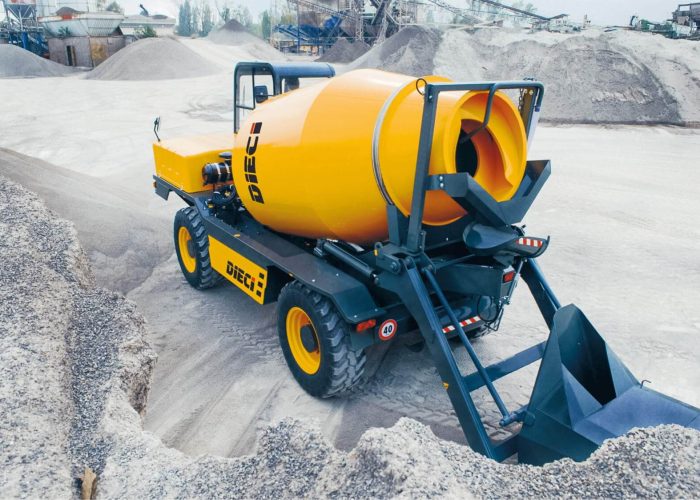

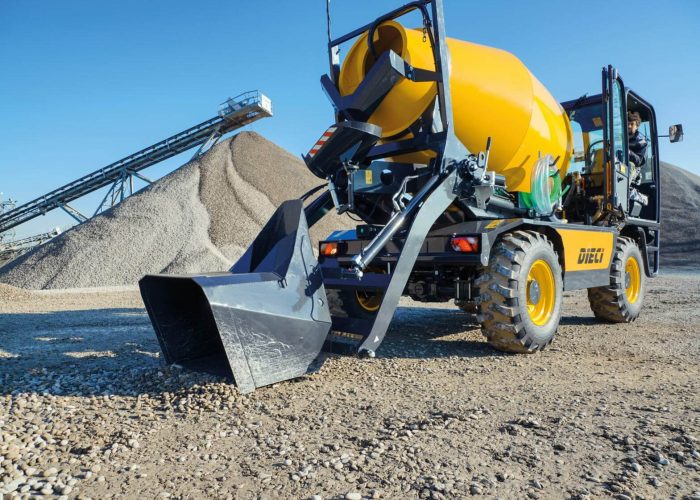

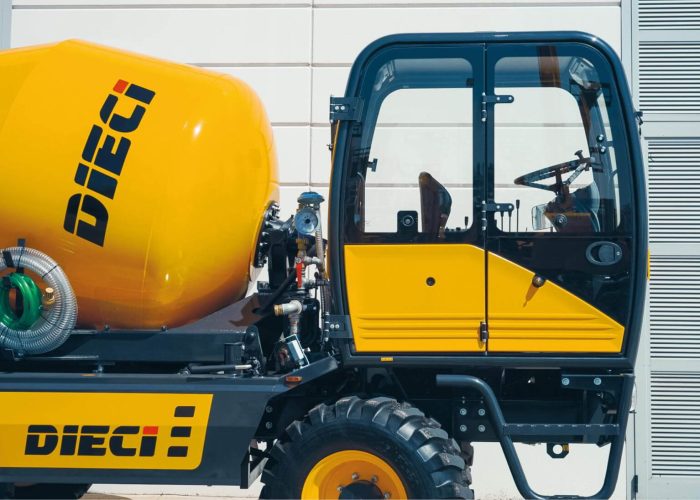

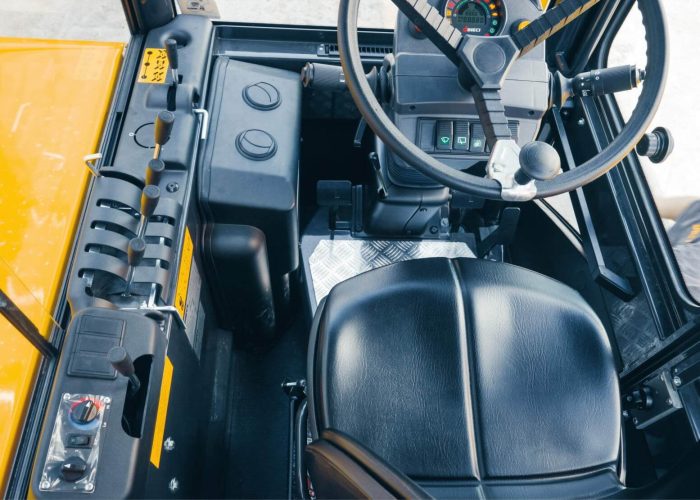

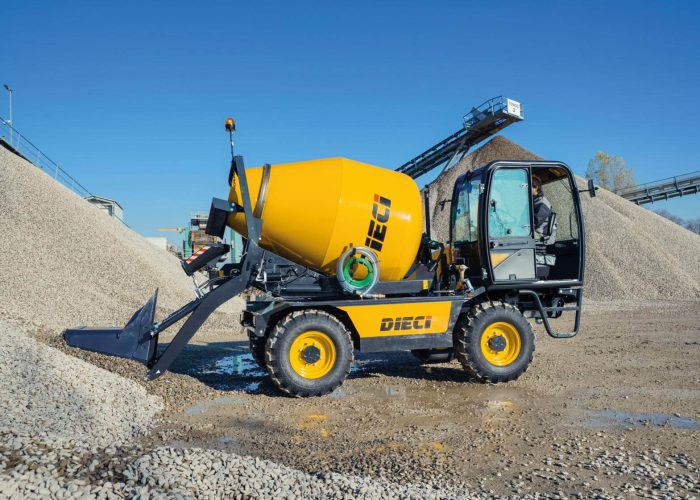

      The self-loading shovel allows total self-sufficiency in the mixture preparation, even in places far from a concrete loading centre for refilling. The ROPS – FOPS approved cab features top of the range ergonomics, comfort and safety.

      TECHNICAL

      Specifications

      Length: 6,100 mm

      Width: 2,370 mm

      Height: 3,075 mm

      Concrete yield: 5.0 m3

      Maximum speed: 27 km/h

      Water tank capacity: 850 L

      Unladen weight: 7,400 kg

      Brand: FPT

      Fuelling: Diesel

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 405/70×24″
