Mixer Truck L 4700

Max Capacity:

630 L

Total Weight:

6,700 kg

Max Power:

74 kW (99 hp)

Engine Brand:




      Dieci Mixer Truck L4700

      Product Info

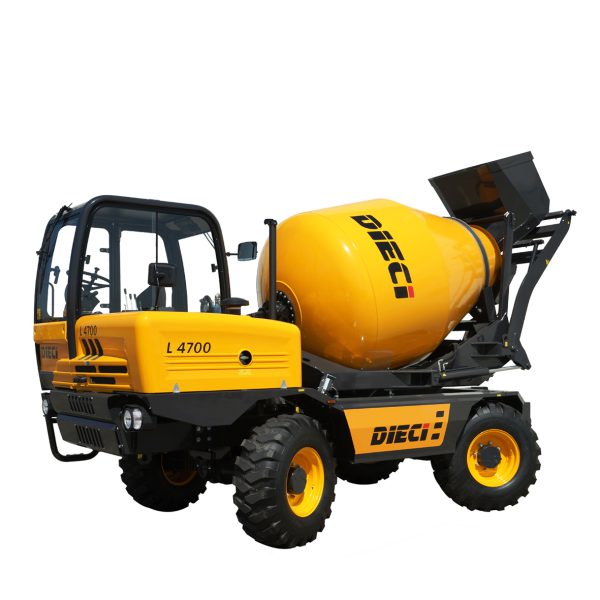

      The L 4700 Truck Mixer is purpose-built for heavy-duty applications in mining, tunnelling, and quarrying sites. Featuring a self-locking axle, 2-speed gearbox, hydrostatic transmission, oil-bath disc brakes, and a height-adjustable, rotating 180° unloading chute. Its spiral blades ensure homogeneous mixing in all sections, while the robust steel construction of the mixing drum guarantees dimensional stability and longevity.

      Enhanced manoeuvrability, compact dimensions, and agility, coupled with its 4-wheel drive system, deliver superior grip for improved stability and safety. The cab is positioned at the top for optimal ergonomics, comfort, and safety. It is ROPS-FOPS approved and equipped with soundproofing, heating, a tilt steering wheel, and an ergonomic seat with suspension.



      Length: 5,290 mm

      Width: 2,400 mm

      Height: 2,940 mm

      Concrete yield: 3.5 m3

      Maximum speed: 23 km/h

      Water tank capacity: 630 L

      Unladen weight: 6,700 kg

      Brand: FPT

      Fuelling: Diesel

      Displacement: 4,485 cm³

      Nominal power: 74 kW (99 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 405/70×20″
