Construction

Rotational Telehandlers

Pegasus – 360° 50.21

Max Capacity:

5,000 kg

Max Lift Height:

20.5 m

Total Weight:

17,540 kg

Max Power:

104 kW (139 hp)

Engine Brand:

FPT
















      Dieci Pegasus Telehandler
      ABOUT

      Product Info

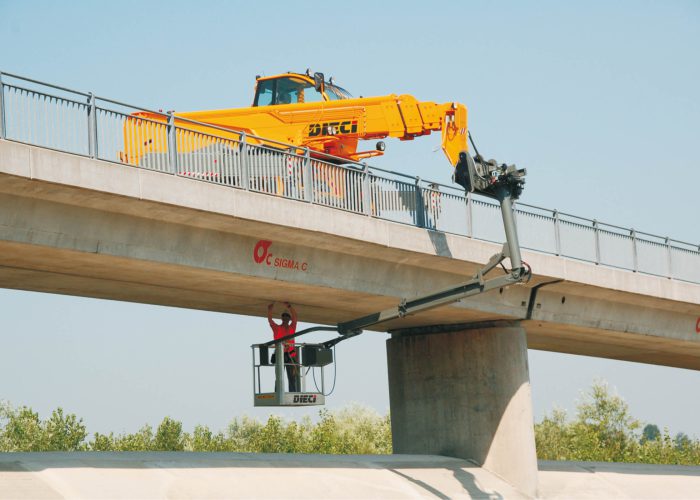

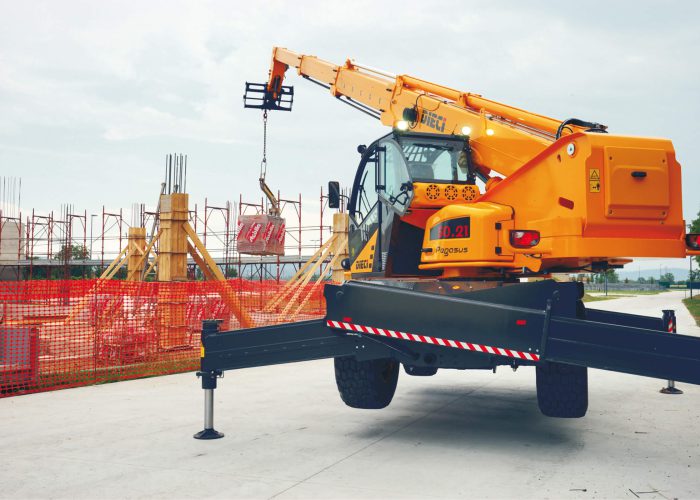

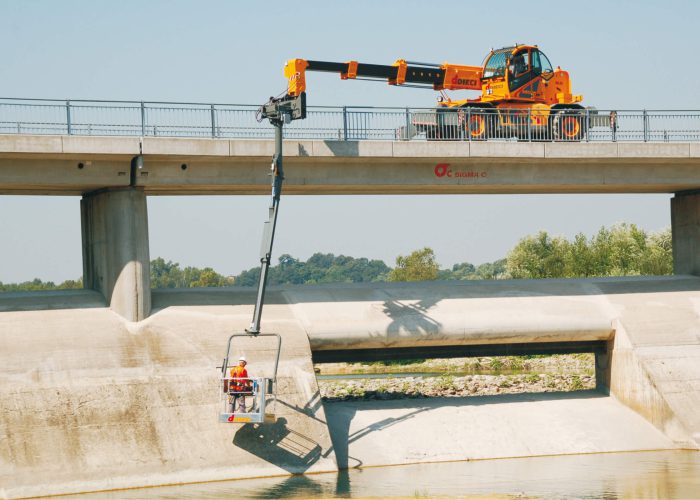

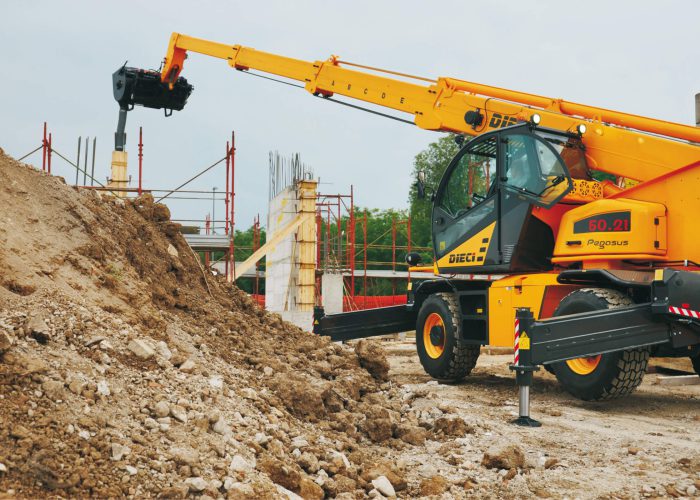

      The Pegasus 50.21 surpasses other telehandlers in reach capabilities thanks to the rotation of the turret, offering incredible 20.5 metre maximum lift height ensures this model is ideal for the most challenging construction working conditions. With a wide array of available attachments, the Pegasus 50.21 can seamlessly transition between functions of a telehandler, crane, and aerial platform, consolidating the entire construction site into one vehicle.

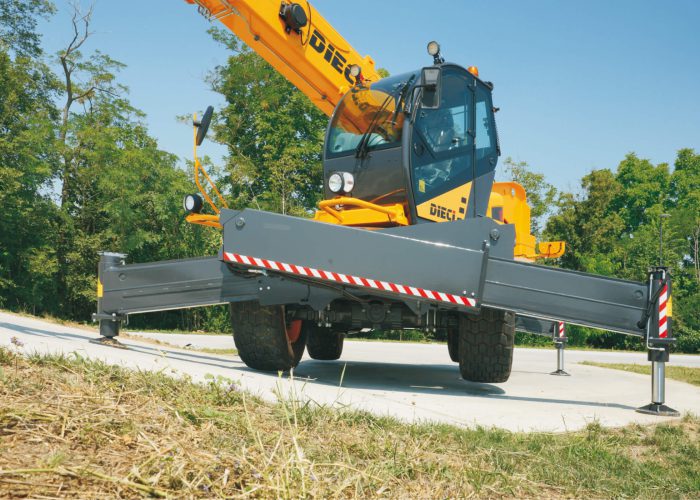

      Engineered for stability and safety both on level ground and off-road, these machines boast an outstanding self-levelling system, adaptive loading software, and anti-crash technology to mitigate risks posed by challenging construction conditions.

      The Pegasus 50.21 delivers unparalleled performance, extreme power, precise movement control, and soundproofing for unmatched comfort.

      TECHNICAL

      Specifications

      Length: 7,150 mm

      Width: 2,380 mm

      Height: 3,020 mm

      Maximum capacity: 5,000 kg

      Maximum lifting height: 20.5m

      Pull-out force: 5,700 daN

      Towing force: 9,400 daN

      Maximum speed: 40 km/h

      Unladen weight: 17,540 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 104 kW (139 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 135 l/min

      Maximum operating pressure: 23 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 18 x 22.5”
