Construction

Fixed Boom Telehandlers

Samson 70.10

Max Capacity:

7,000 kg

Max Lift Height:

9.65 m

Total Weight:

12,100 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

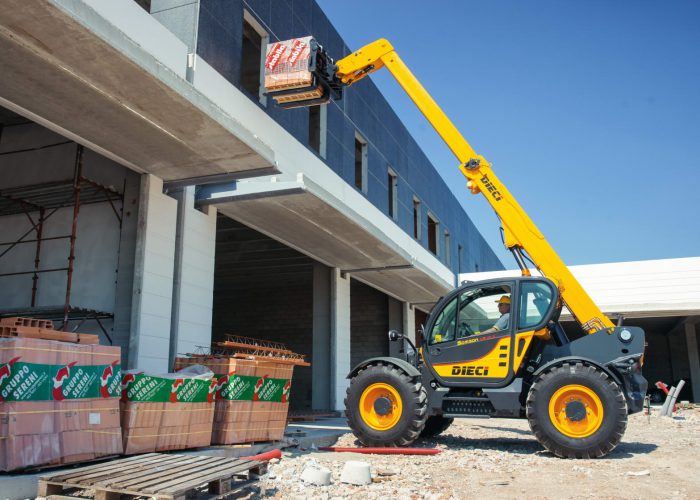

      Dieci Samson Telehandler
      ABOUT

      Product Info

      The Samson 70.10 has outstanding power and agility qualities making it particularly suitable for heavy and intensive work both in the construction and industrial sectors.

      This model stands out thanks to its great lifting capacities, strength and speed. The ROPS – FOPS approved cab is designed to ensure a high level of comfort and can be equipped with an enhanced air conditioning system.

      The on-board computer with LCD display allows the operator to monitor the vehicle operating parameters. The boom can be fully operated by the hydraulic control distributor-single joystick which also incorporates FNR, for easier and more practical direction control.

      TECHNICAL

      Specifications

      Length: 5,910 mm

      Width: 2,380 mm

      Height: 2,490 mm

      Maximum capacity: 7,000 kg

      Maximum lifting height: 9.65 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 30 km/h

      Unladen weight: 12,100 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 L/min

      Maximum operating pressure: 26.0 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 445/65×22.5″
