Mining

Fixed Boom Telehandlers

Samson 70.10

Max Capacity:

7,000 kg

Max Lift Height:

9.65 m

Total Weight:

12,100 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

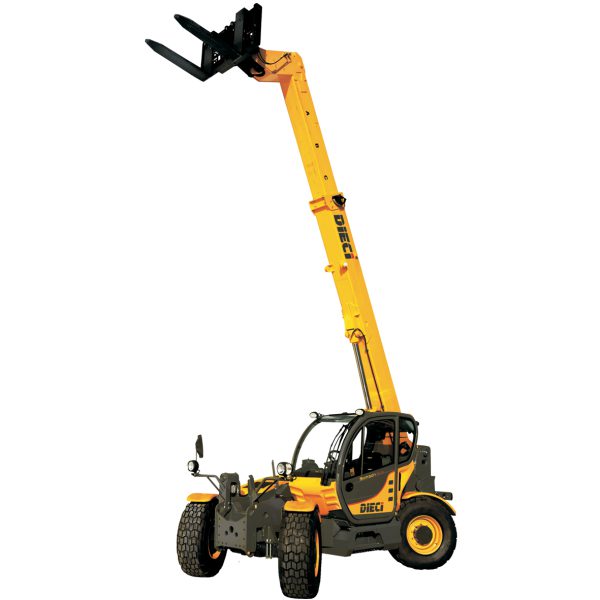

      Dieci Samson Telehandler
      ABOUT

      Product Info

      The Samson 70.10 offers exceptional power and agility, making it an ideal choice for demanding tasks in both mining and industrial settings.

      Renowned for its impressive lifting capacities, strength, and speed, this model excels at handling heavy loads commonly encountered in mining operations. Its ROPS – FOPS approved cab prioritises operator comfort and can be enhanced with an advanced air conditioning system to mitigate harsh working conditions.

      Equipped with an onboard computer featuring an LCD display, operators can easily monitor vehicle operating parameters, ensuring optimal performance and safety standards are maintained throughout mining operations.

      TECHNICAL

      Specifications

      Length: 5,910 mm

      Width: 2,380 mm

      Height: 2,490 mm

      Maximum capacity: 7,000 kg

      Maximum lifting height: 9.65 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 30 km/h

      Unladen weight: 12,100 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 L/min

      Maximum operating pressure: 26.0 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 445/65×22.5″
