Truck Mixer F7000 T

Max Capacity:

5 m³

Total Weight:

7,400 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

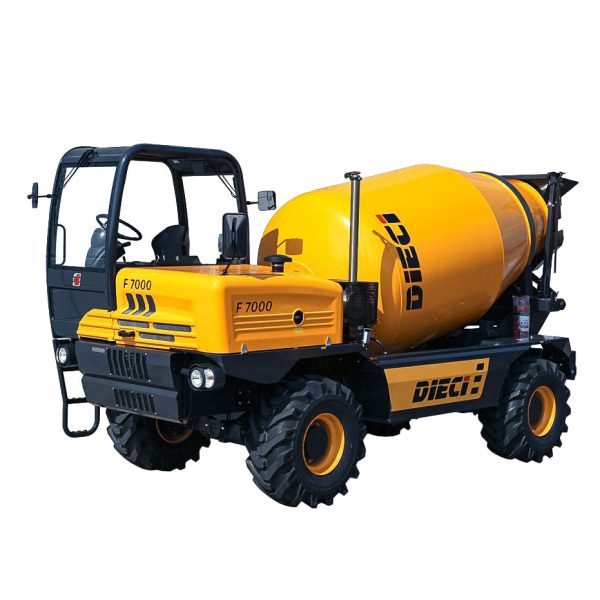

      F7000 T
      ABOUT

      Product Info

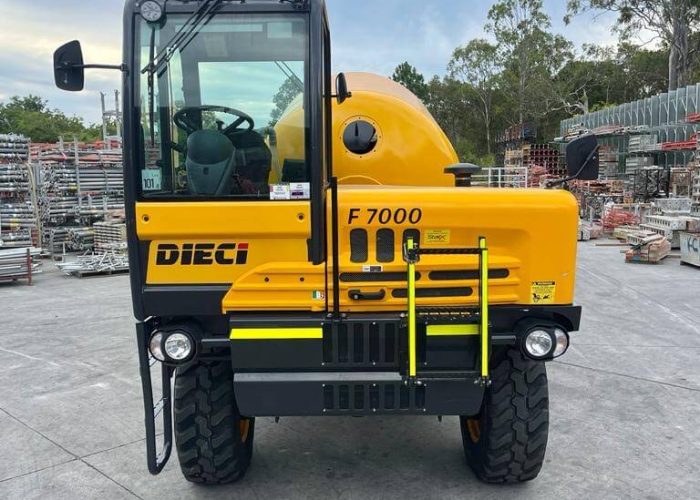

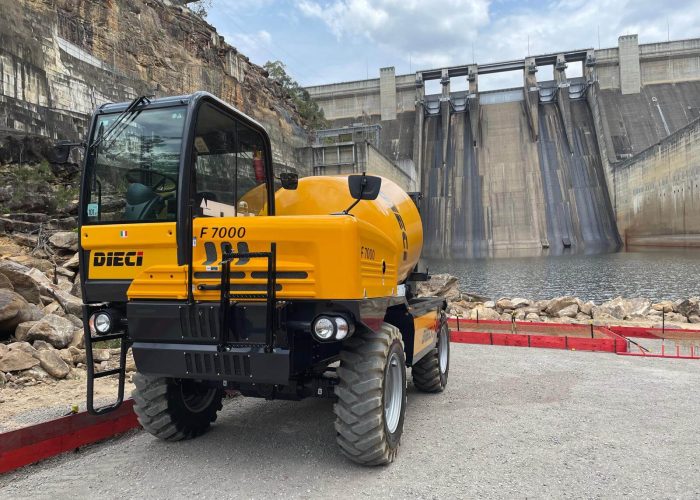

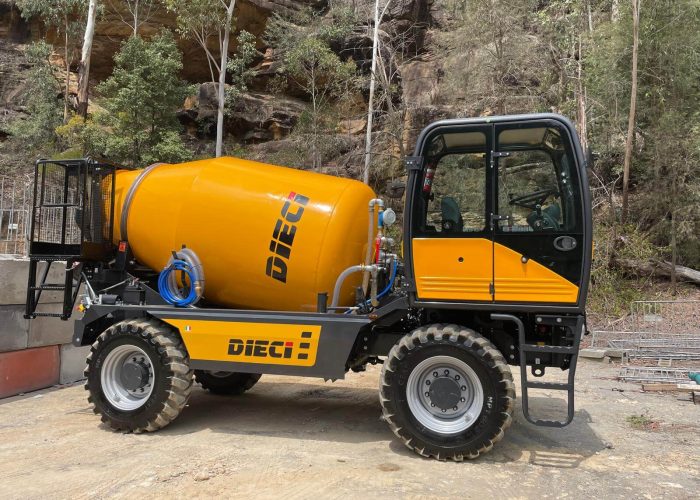

      The F 7000 T (without-self-loading) stands as the largest model in the Dieci Truck Mixer lineup, tailored for demanding and intensive operations.

      While it doesn’t feature a self-loading shovel, it comes with a self-locking rear axle, a servo-controlled 2-speed gearbox, and a hydrostatic transmission. It boasts four-wheel drive and steering, with all wheels equipped with oil-bath disc brakes for superior stopping power. The discharge chute is height-adjustable and offers a 180° rotation for enhanced flexibility during unloading.

      TECHNICAL

      Specifications

      Length: 6,100 mm

      Width: 2,370 mm

      Height: 3,050 mm

      Concrete yield: 5.0 m3

      Maximum speed: 27 km/h

      Water tank capacity: 850 l

      Unladen weight: 7,400 kg

      Brand: FPT

      Fuelling: Diesel

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 405/70×24″
