Construction

Fixed Boom Telehandlers

Zeus 33.11

Max Capacity:

3,300 kg

Max Lift Height:

10.6 m

Total Weight:

8,200 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT
















      Dieci Zeus Telehandler
      ABOUT

      Product Info

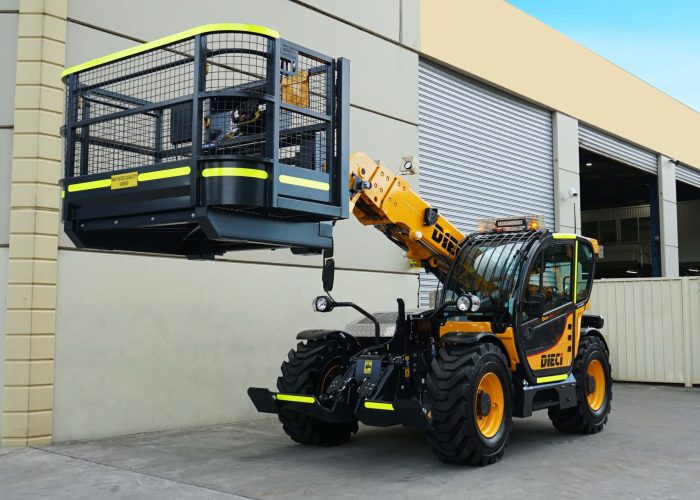

      EWP OPTION AVAILABLE

      The Zeus 33.11 is engineered to provide the operator with an ideal combination of strength and manoeuvrability for handling heavy loads in confined construction site spaces.

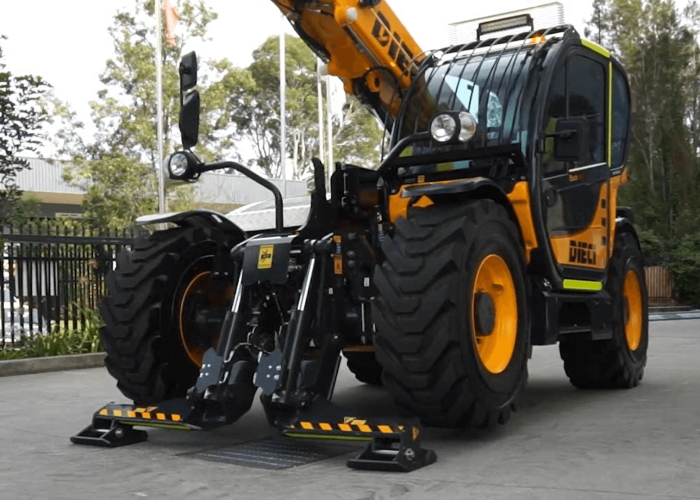

      A high level of safety is assured by the proportional control outriggers and transverse levelling device. Maintenance is simplified due to the durable components and materials that need replacement after several hundred hours of use. The Zeus range also ensures operating costs are minimised with significant attention given to fuel consumption and emissions.

      TECHNICAL

      Specifications

      Length: 5,300 mm

      Width: 2,290 mm

      Height: 2,310 mm

      Maximum capacity: 3,300 kg

      Maximum lifting height: 10.6 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 40 km/h

      Unladen weight: 8,200 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 L/min

      Maximum operating pressure: 24.0 MPa

      Transmission type: Hydrostatic with variable flow pump

      Standard tyres: 400/70×20″
