Mining

Fixed Boom Telehandlers

Zeus 33.11

Max Capacity:

3,300 kg

Max Lift Height:

10.6 m

Total Weight:

8,200 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

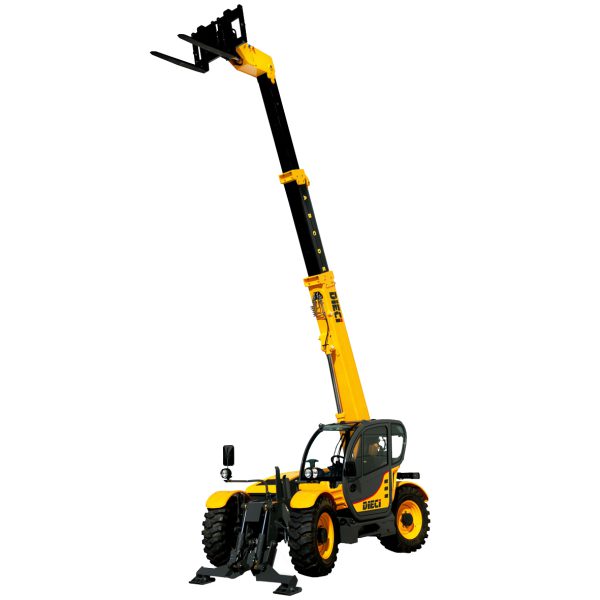

      Dieci Zeus Telehandler
      ABOUT

      Product Info

      EWP OPTION AVAILABLE

      The Zeus 33.11 is purpose-built to deliver optimal performance in mining environments, providing operators with a harmonious blend of power and agility essential for managing heavy loads in tight, complex spaces.

      Ensuring operator safety is paramount, with features such as proportional control outriggers and a transversal levelling device, guaranteeing stability during load handling operations. Additionally, the telehandler’s durable components and materials simplify maintenance requirements, offering longevity even after extensive use in rugged mining conditions.

      With a steadfast commitment to efficiency, the Zeus 33.11 prioritises reduced fuel consumption and emissions, resulting in lower operating costs and promoting environmentally responsible practices.

      TECHNICAL

      Specifications

      Length: 5,300 mm

      Width: 2,290 mm

      Height: 2,310 mm

      Maximum capacity: 3,300 kg

      Maximum lifting height: 10.6 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 40 km/h

      Unladen weight: 8,200 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 L/min

      Maximum operating pressure: 24.0 MPa

      Transmission type: Hydrostatic with variable flow pump

      Standard tyres: 400/70×20″
