Construction

Fixed Boom Telehandlers

Zeus 35.10

Max Capacity:

3,500 kg

Max Lift Height:

9.75 m

Total Weight:

8,000 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

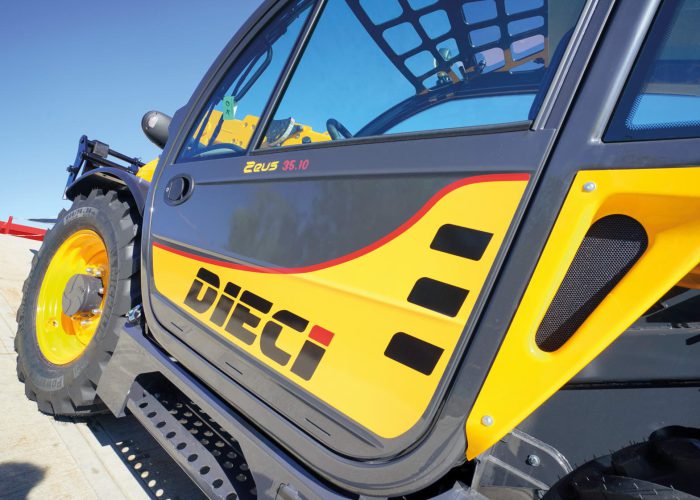

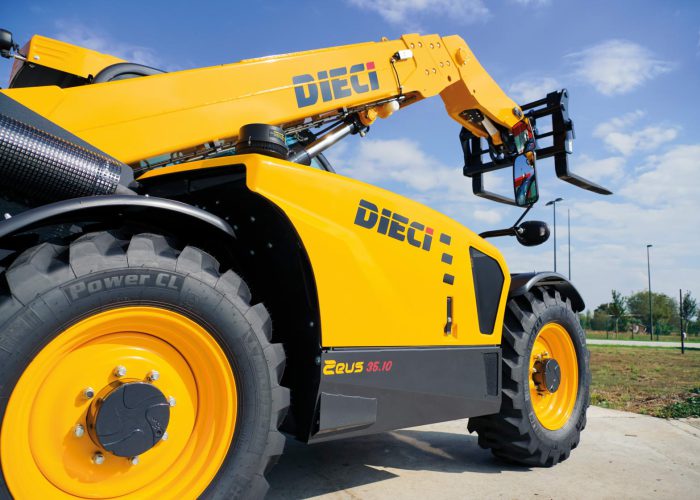

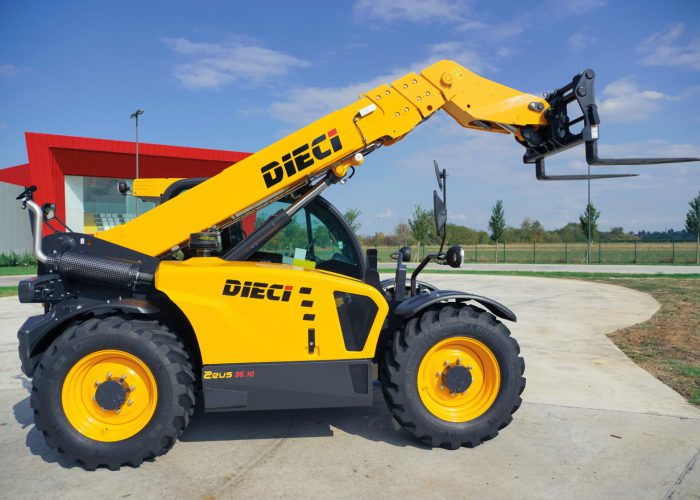

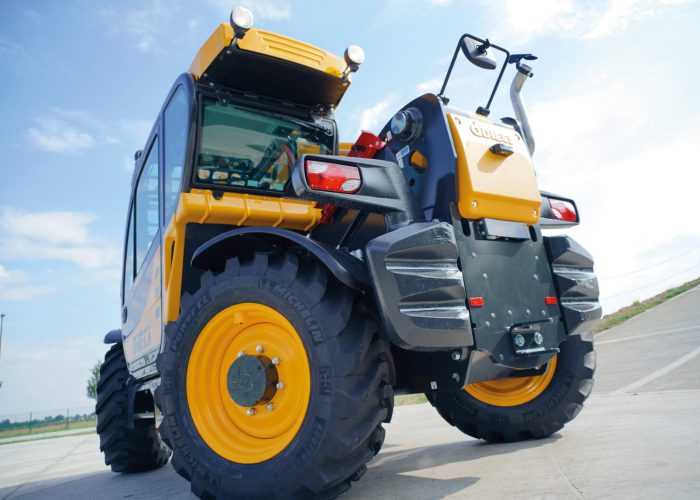

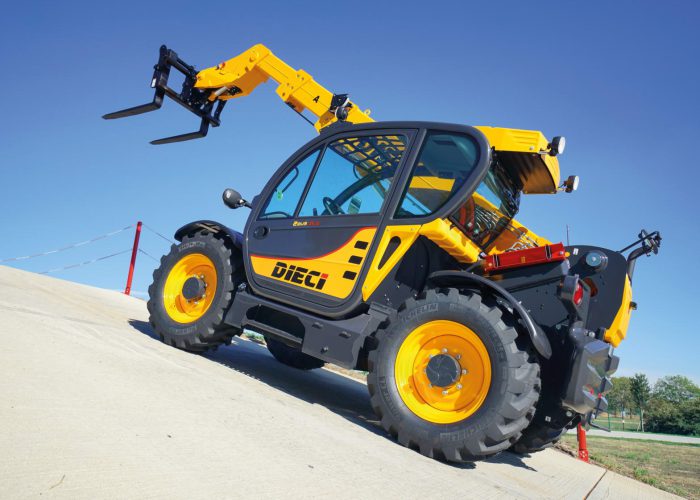

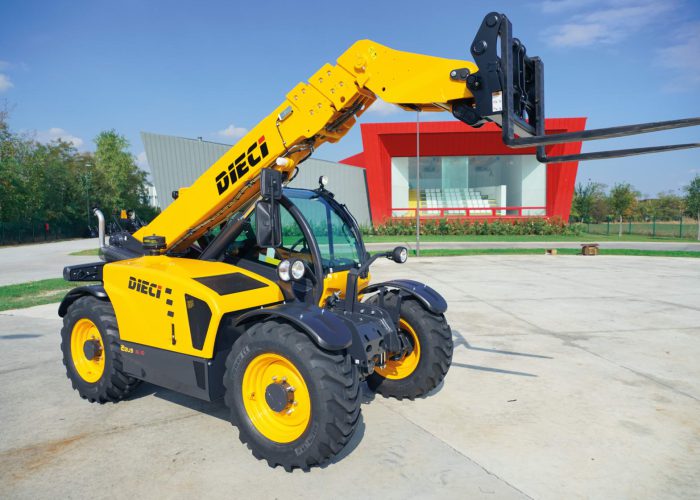

      Dieci Zeus Telehandler
      ABOUT

      Product Info

      The Zeus 35.10 is meticulously engineered to provide operators with an optimal blend of power and agility, especially when maneouvering heavy loads in tight spaces.

      The Dieci range of Zeus telehandlers is crafted to accommodate a wide array of equipment necessary for various tasks on construction sites, including forks, loaders, lifting hooks, jibs with winches, grippers, material baskets, mixing buckets, concrete ladles, sweepers, salt spreaders, and snowplow blades.

      TECHNICAL

      Specifications

      Length: 4,950 mm

      Width: 2,290 mm

      Height: 2,310 mm

      Maximum capacity: 3,500 kg

      Maximum lifting height: 9.75 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 30 km/h

      Unladen weight: 8,000 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 l/min

      Maximum operating pressure: 24 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 400 / 70 x 20″
