Zeus 38.10 | 3.8T Mining Telehandler

Max Capacity:

3,800 kg

Max Lift Height:

9.75 m

Total Weight:

8,000 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

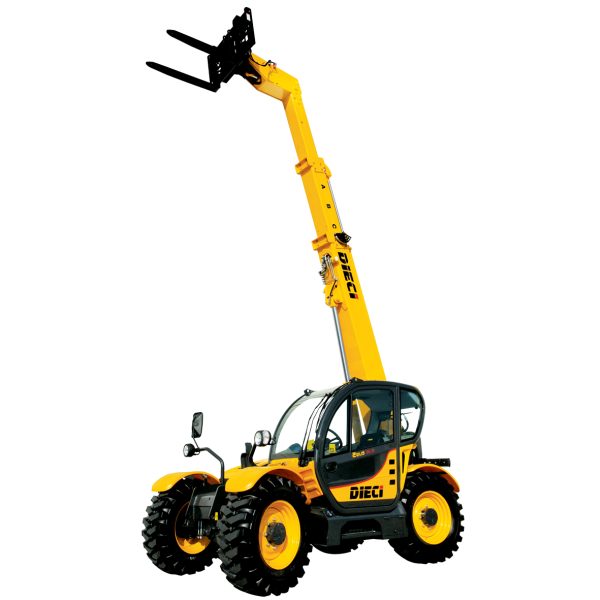

    Dieci Zeus Telehandler with its boom raised and forks extended

    Zeus 38.10 3.8T Mining Telehandler

    The Dieci Zeus 38.10 3.8T Mining Telehandler is  specifically designed for superior performance in Australian mining operations; offering operators the perfect blend of safety, power, and manoeuvrability needed to handle heavy loads in confined spaces typical of mining sites.

    Safety is prioritized with the integration of a transverse leveling system that helps maintain stability during load handling. Additionally, the Zeus 3.8 tonne Mining Telehandler is built with robust components and materials, ensuring long-lasting durability and reducing the need for frequent maintenance and part replacements, even under tough mining conditions.

    Click here to see our full range of mining telehandlers specially optimised for Australian mining conditions.

    Request a Follow-up From Your Local Dieci Sales Team





      Specifications

      Length: 4,950 mm

      Width: 2,290 mm

      Height: 2,310 mm

      Maximum capacity: 3,800 kg

      Maximum lifting height: 9.75 m

      Pull-out force: 5,700 daN

      Towing force: 7,300 daN

      Maximum speed: 30 km/h

      Unladen weight: 8,000 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 130 l/min

      Maximum operating pressure: 24 MPa

      Transmission type: Hydrostatic with variable displacement pump

      Standard tyres: 400 / 70 x 20″

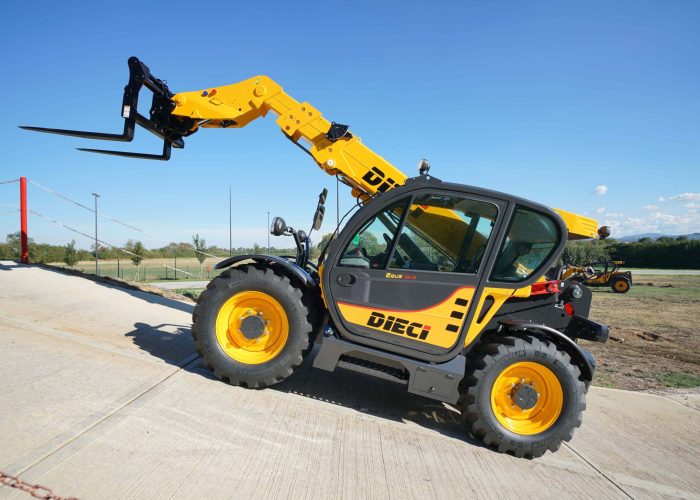

        Left side view of the Zeus 38.10 3.8T Mining Telehandler driving up a concrete slope on an Australian mine site

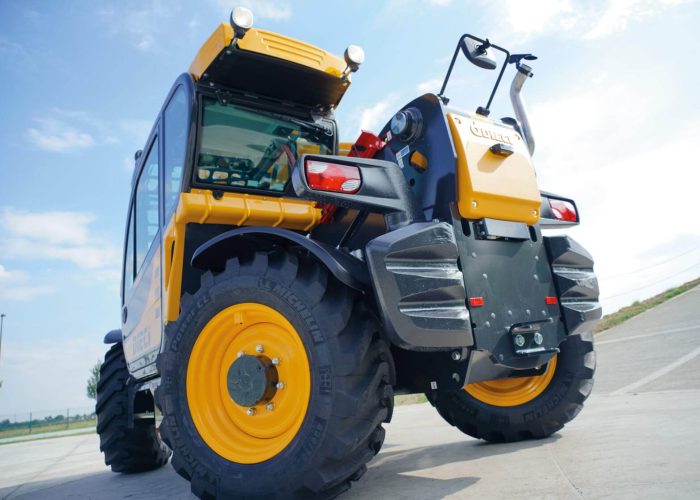

        Rear view of the Zeus 38.10 3.8T Mining Telehandler showing its rear steering and 4 wheel steering

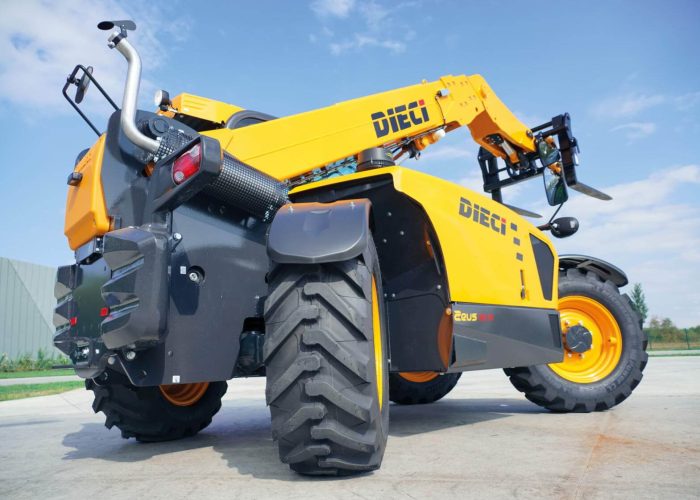

        right rear view of the Zeus 38.10 3.8T Mining Telehandler showing its rear wheel steering

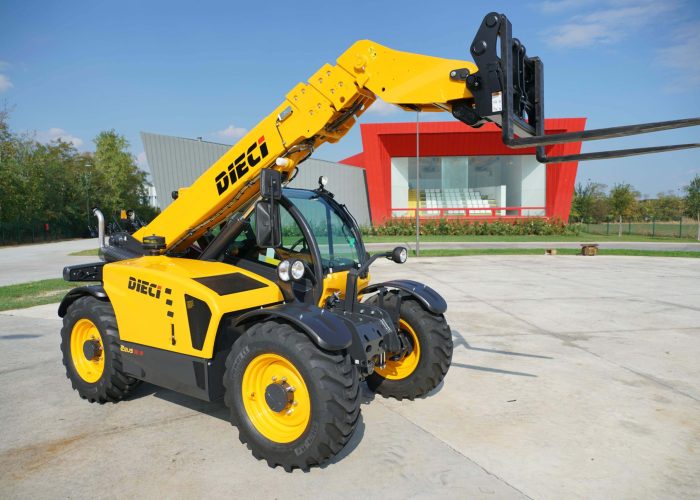

        front right view of the Zeus 38.10 3.8T Mining Telehandler with its boom and forks raised

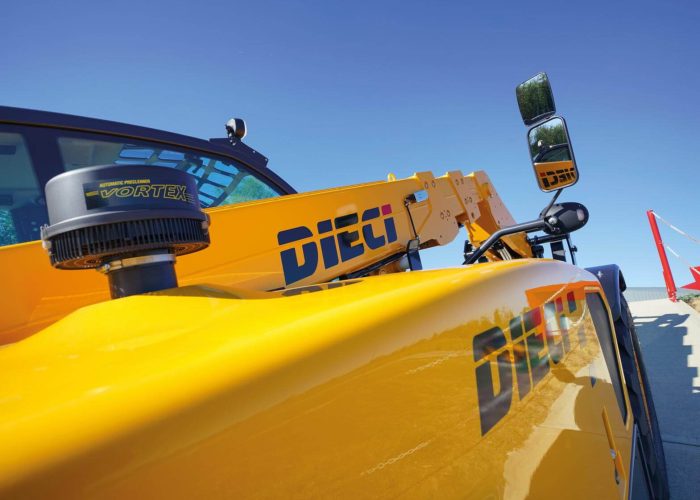

        close up right side view of the Zeus 38.10 3.8T Mining Telehandler showing the Dieci logo and mirrors

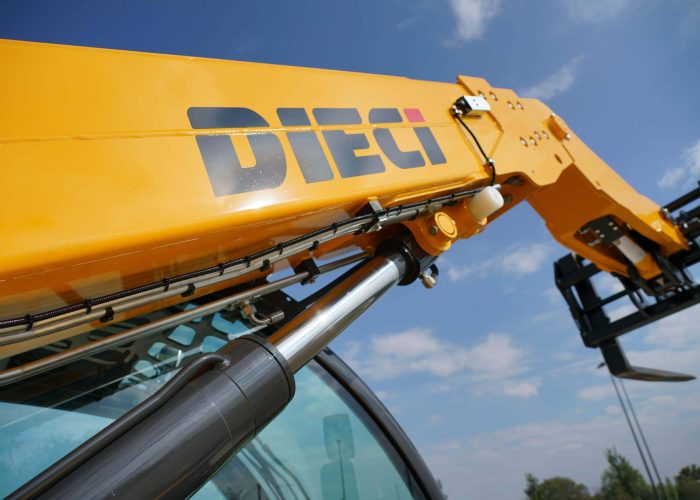

        Close up view of the Zeus 38.10 3.8T Mining Telehandler's boom and cab

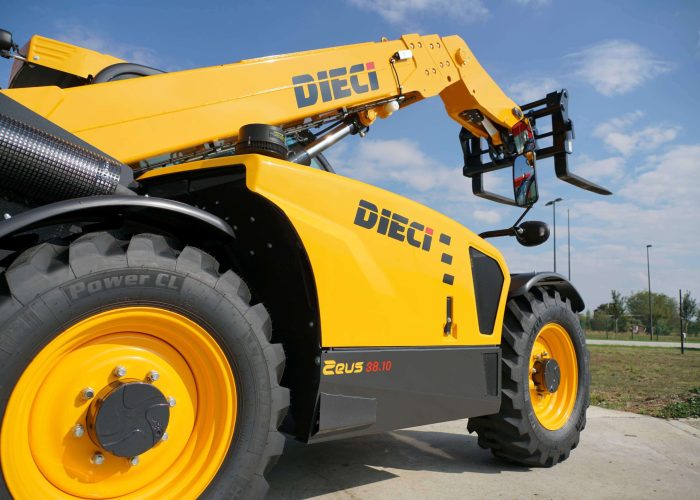

        right side view of the Dieci Zeus 38.10 3.8T Mining Telehandler with its forks and boom in the air
