Construction

Fixed Boom Telehandlers

Zeus 40.7

Max Capacity:

4,000 kg

Max Lift Height:

7.0 m

Total Weight:

7,700 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

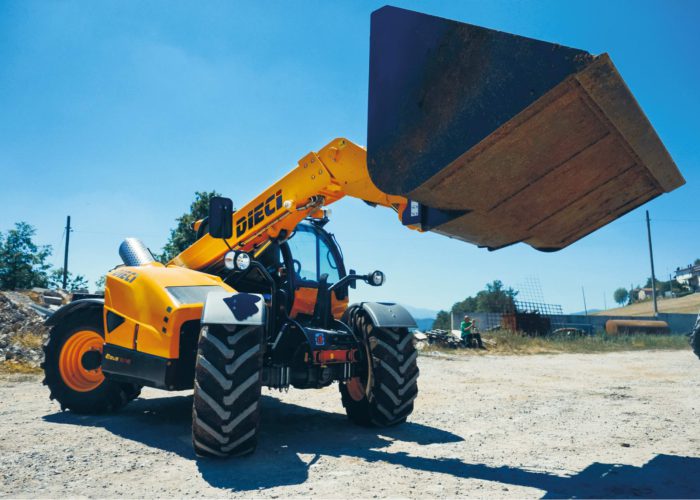

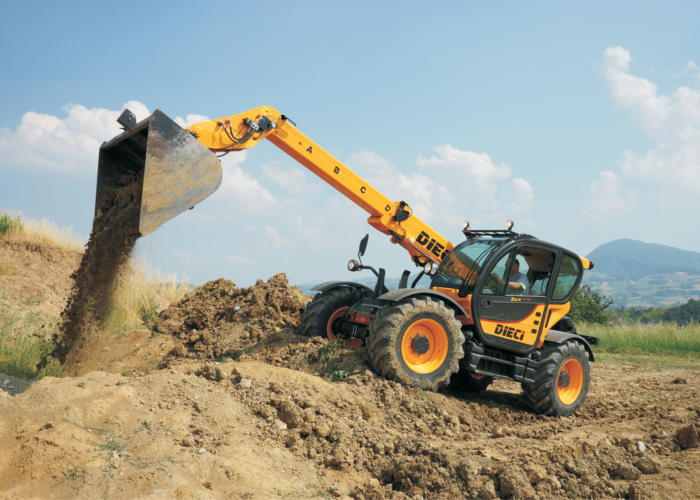

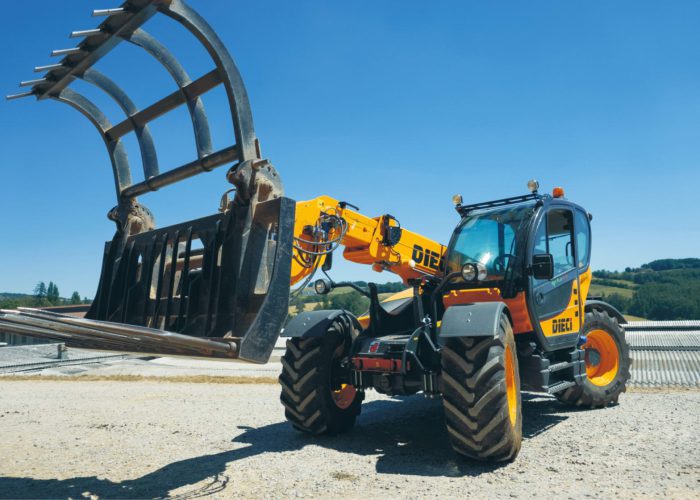

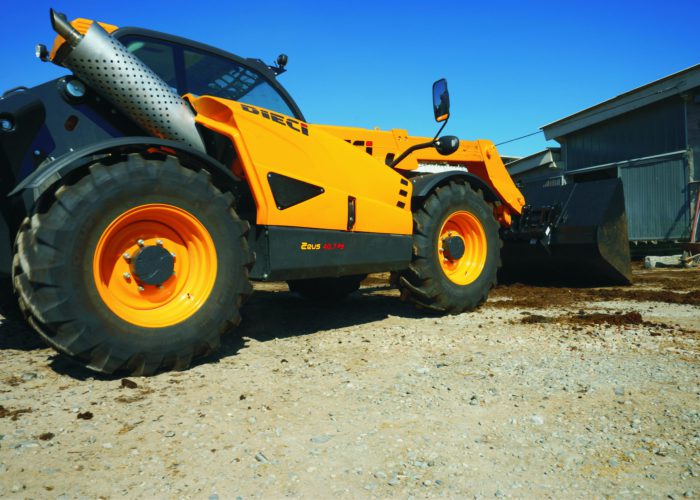

      Dieci Zeus Telehandler
      ABOUT

      Product Info

      Requirements on construction sites are evolving, with a focus on reducing management costs and continually enhancing vehicle productivity. The Dieci Zeus 40.7 responds to these shifting demands through innovative design and engineering a telehandler that is more versatile, robust, and reliable, while also being easy and intuitive to drive and operate.

      Maintenance on the Zeus 40.7 is straightforward, thanks to durable components and materials that only need replacement after several hundred hours of use.

      TECHNICAL

      Specifications

      Length: 5,075 mm

      Width: 2,260 mm

      Height: 2,445mm

      Maximum capacity: 7,700 kg

      Maximum lifting height: 7 m

      Pull-out force: 6,000 daN

      Towing force: 8,200 daN

      Maximum speed: 40 km/h

      Unladen weight: 7,700 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 100 L/min

      Maximum operating pressure: 25.0 MPa

      Transmission type: Torque convertor with Powershift EVO2 reversing

      Standard tyres: 400/70×24″
