Mining

Fixed Boom Telehandlers

Zeus 40.7

Max Capacity:

4,000 kg

Max Lift Height:

7.0 m

Total Weight:

7,700 kg

Max Power:

93 kW (125 hp)

Engine Brand:

FPT

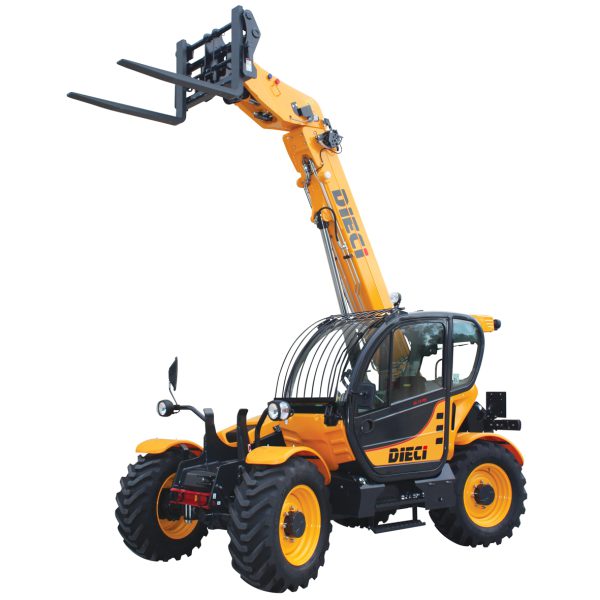

      Dieci Zeus Telehandler
      ABOUT

      Product Info

      The Zeus 40.7 caters to heavy-duty and demanding mining operations. Its lifting equipment ensures maximum boom descent speed, even at idle engine speed, providing operators with exceptional manoeuvrability and precise movements, along with increased vehicle responsiveness and stability. Featuring a reinforced boom with enhanced swing force and advanced high-tech electronic controls, the Zeus 40.7 delivers outstanding performance.

      Operators enjoy practical and comfortable driving experiences, facilitated by a large glass surface, wireless cameras, an LCD display, and a single-lever joystick with integrated FNR for intuitive and comfortable control.

      TECHNICAL

      Specifications

      Length: 5,075 mm

      Width: 2,260 mm

      Height: 2,445mm

      Maximum capacity: 7,700 kg

      Maximum lifting height: 7 m

      Pull-out force: 5,700 daN

      Towing force: 8,200 daN

      Maximum speed: 40 km/h

      Unladen weight: 7,700 kg

      Brand: FPT

      Fuelling: Diesel

      Cooling: Liquid

      Displacement: 4,485 cm³

      Nominal power: 93 kW (125 hp)

      RPM at nominal power: 2,200 rpm

      Emission standard: Stage IIIA/Tier 3

      Hydraulic pump capacity: 100 L/min

      Maximum operating pressure: 25.0 MPa

      Transmission type: Torque converter with Powershift EVO2 reversing

      Standard tyres: 400/70×24″
